Product Details:
Payment & Shipping Terms:
|
Capacity: | 240-260 M3 | Motor HP: | 30kw To 75Kw |
---|---|---|---|
Ex Standard: | ExdIIBt4/IECEX/A-TEX | Name: | Centrifugal Pump |
Material: | Carbon Steel | Color: | Customized |
High Light: | water pump replacement parts,impeller pump parts |

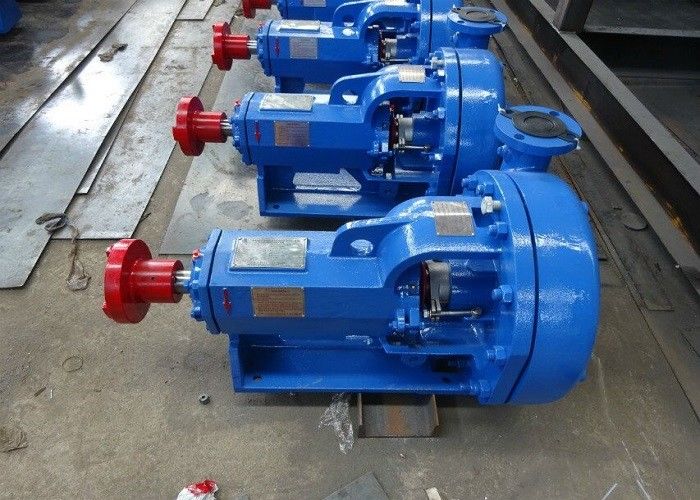

Solids control centrifugal pump with 55kw pump spare parts change for drilling fluids 30kw to 75kw
Products description:
The centrifugal pump is the power resource of desander, desilter and jet mud mixer. It can increase the pressure of drilling liquid with solids to a certain degree and transport it through pipelines to separation equipment to carry out the solid-liquid separation. The petroleum drilling liquid (mud) is mainly composed of water, active solids, inert solids and chemical agents. Different mud with different components and performances are formed based on different mixtures and interactions.
Features:
1. Durable mechanical seal made of tungsten carbide alloy.
2. FAG, SKF or other top brand bearings.
3. SOG oil seal.
4. Interchangeable with a famous pump.
5. Less maintenance cost.
6. Compact and small footprint
Technical specifications:
Parameter: Model: |
Flow (m/h) |
Lift (m) |
Match Power (kW) |
Weighi (kg) |
Dimension (L*W*H) (mm) |
SB300-40 | 300 | 40 | 75 | 920 | 2020*650*1000 |
SB240-40 | 240 | 40 | 55 | 800 | 1900*650*960 |
SB180-34 | 180 | 34 | 45 | 750 | 1800*540*840 |
SB120-40 | 120 | 40 | 37 | 722 | 1800*540*800 |
SB90-40 | 90 | 40 | 30 | 680 | 1716*494*696 |
SB90-30 | 90 | 30 | 22 | 590 | 1604*438*739 |
SB40-25 | 40 | 25 | 11 | 510 | 1459*438*679 |
Contact Person: sales
