5L Seamless Casing Pipe

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API 5CT, ISO, QHSE

Model Number: 4 1/2"-20"

Payment & Shipping Terms

Minimum Order Quantity: 1 metric ton

Price: Negotiable

Packaging Details: Be bundled by steel strap

Payment Terms: T/T, L/C

Get Best Price
High Light:

seamless steel casing pipes

,

seamless drill pipe

Production Class:
5L
Structure:
Seamless Pipe
Steel Grade:
J55, K55, L80, N80, P110
Section Of Shape:
Round
Technique:
Hot Rolled
Application:
Oil Drilling
Length:
R2
Production Class:
5L
Structure:
Seamless Pipe
Steel Grade:
J55, K55, L80, N80, P110
Section Of Shape:
Round
Technique:
Hot Rolled
Application:
Oil Drilling
Length:
R2

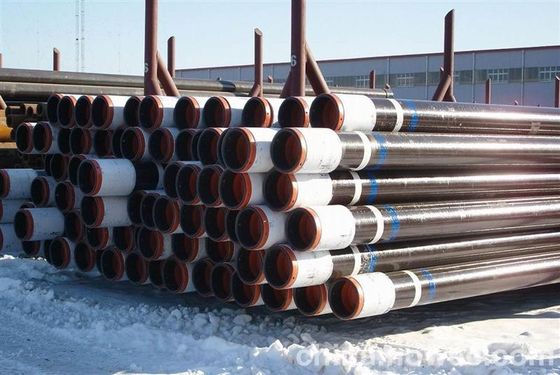

5L Seamless Casing Pipe

API 5L J55 K55 N80 L80 P110 oil casing and tubing, oil well casing sizes



Description of oil casing pipe:

Casing seamless pipe is mainly used for supporting the wall of the well during and after the drilling to

ensure the drilling process and the normal operation of the entire well after completion. The oil casing

pipe is the lifeline for maintaining the operation of the oil well.



Features:



1. Length range R3

2. API 5CT seamless pipe





Technical Specification:



Standard API 5CT/ ISO11960
Grade Group.1

H40/PSL.1, J55/PSL.1, J55/PSL.2, J55/PSL.3, K55/PSL.1, K55/PSL.2, K55/PSL.3,

N80(1)/PSL.1, N80(1)/PSL.2, N80(Q)/PSL.1, N80(Q)/PSL.2, N80(Q)/PSL.3

Group.2 M65/PSL.1, M65/PSL.3, L80/PSL.2, L80(1)/PSL.1, L80(1)/PSL.3, L80(9Cr)/PSL.1, L80(13Cr)/PSL.1, C90/PSL.1, C90/PSL.2, C90/PSL.3, T95/PSL.1, T95/PSL.2T95/PSL.3
Group.3 P110/PSL.1, P110/PSL.2, P110/PSL.3,
Group.4 Q125/PSL.1, Q125/PSL.2, Q125/PSL.3,
Minimum Order Quantity Negotiable
Outside Diameter Casing 4 1/2 inch to 20 inch or 114.3mm to 508mm
Wall Thickness According to API 5CT Standard
Length Casing R1 (4.88m to 7.62m), R2 (7.62m to 10.36m), R3 (10.36m to 14.63m)
Processing type Seamless
Type of End-Finish Casing P, S, B, L





Mechanical Properties:



Standard Steel grade Tensil Strength(Mpa) Yeild Strength(Mpa) Elongation(%)
API 5CT J55 ≥517 379~552 0.5%
API 5CT K55 ≥655 379~552 0.5%
API 5CT N80 ≥689 552~758 0.5%
API 5CT L80 ≥655 552~655 0.5%
API 5CT P110 ≥862 758~965 0.6%



Packaging & Delivery

Packaging Details: Casing Pipe in bundles

Port:Xingang Port/Shanghai Port
