Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API 5CT, ISO, QHSE
Model Number: 1.05"-4 1/2"
Payment & Shipping Terms
Minimum Order Quantity: 1 metric ton
Price: Negotiable
Packaging Details: Be bundled by steel strap
Payment Terms: T/T, L/C
Steel Grade: |
J55, K55, L80, N80, P110, P110-13Cr |
Standard: |
API 5CT, ISO, QHSE |
Technique: |
Hot Rolled |
Alloy Or Not: |
Alloy Steel |
Secondary Or Not: |
Non-secondary |
Section Of Shape: |
Round |
Steel Grade: |
J55, K55, L80, N80, P110, P110-13Cr |
Standard: |
API 5CT, ISO, QHSE |
Technique: |
Hot Rolled |
Alloy Or Not: |
Alloy Steel |
Secondary Or Not: |
Non-secondary |
Section Of Shape: |
Round |
API 5CT Standard casing and tubing for oil production extraction

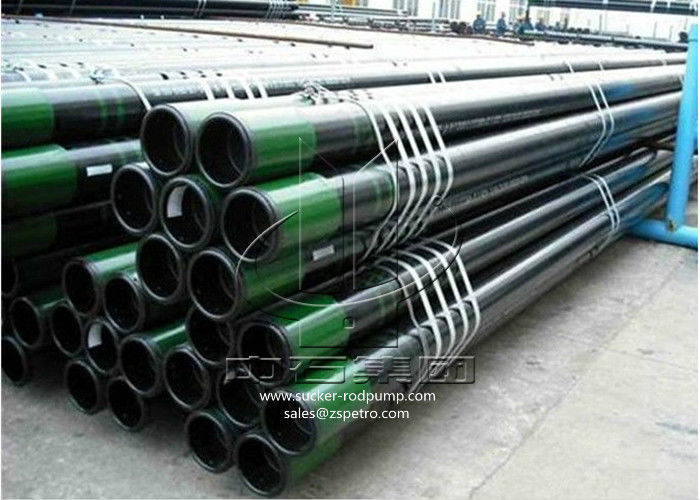

Description for 13Cr tubing pipe:
Tubing is a pipe used for the transportation of crude oil and natural gas from oil or gas layer to the
surface after drilling is completed. It is made to withstand the pressure generated from the extraction
process.
Tubing is manufactured in the same way as casing, except that an additional process known as
"upsetting" is applied to thicken the pipes.
Features:
1. Seamless oil pipe
2. Hot-rolling pipe
3. Size OD: 1.05”-4 1/2”
Technical specification:
| API 5CT standard casing and tubing | |
| Steel grade | J55,K55,N80, N80Q, L80, P110 |
| Processing method: | Hot rolled |
| Outside Diameter: | 26.67-508mm |
| Wall thickness: | 2.87-22.22mm |
| Length: | R1, R2, R3 |
| Standard: | API 5CT |
| Specification: | O.D: 1.05" - 20" (inch) |
| WT: 4.6PPF,4.7PPF,5.8PPF,5.95PPF,6.4PPF,6.5PPF,7.8PPF,7.9PPF,etc. | |
Chemical Compositions(%):
| Standard | Steel Grade | Chemical Composition (%) | ||||||||||
| C | Si | Mn | P | S | Cr | Ni | Cu | Mo | V | Als | ||
| API 5CT | J55 |
0.34~ 0.39 |
0.20~ 0.35 |
1.25~ 1.50 |
≤0.020 | ≤0.015 | ≤0.15 | ≤0.20 | ≤0.20 | / |
/
|
≤0.020 |
| API 5CT | K55 |
0.34~ 0.39 |
0.20~ 0.35 |
1.25~ 1.50 |
≤0.020 | ≤0.015 | ≤0.15 | ≤0.20 | ≤0.20 | / | / | ≤0.020 |
| API 5CT | N80 |
0.34~ 0.38 |
0.20~ 0.35 |
1.45~ 1.70 |
≤0.020 | ≤0.015 | ≤0.15 | / | / | / |
0.11~ 0.16 |
≤0.020 |
| API 5CT | L80 |
0.15~ 0.22 |
≤1.00 |
0.25~ 1.00 |
≤0.020 | ≤0.010 |
12.0~ 14.0 |
≤0.20 | ≤0.20 | / | / | ≤0.020 |
| API 5CT | P110 |
0.26~ 0.35 |
0.17~ 0.37 |
0.40~ 0.70 |
≤0.020 | ≤0.010 |
0.80~ 1.10 |
≤0.20 | ≤0.20 |
0.15~ 0.25 |
≤0.08 | ≤0.020 |
Mechanical properties:
| Standard | Steel grade | Tensil Strength(Mpa) | Yeild Strength(Mpa) | Elongation(%) |
| API 5CT | J55 | ≥517 | 379~552 | 0.5% |
| API 5CT | K55 | ≥655 | 379~552 | 0.5% |
| API 5CT | N80 | ≥689 | 552~758 | 0.5% |
| API 5CT | L80 | ≥655 | 552~655 | 0.5% |
| API 5CT | P110 | ≥862 | 758~965 | 0.6% |
