Chrome Plated Barrel Heavy Walled Suker Rod Pump

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: Sucker rod pump

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price
High Light:

Heavy Walled Suker Rod Pump

,

AISI 1045 Suker Rod Pump

,

Heavy Walled linear rod pump

Standard:
API 11AX
Application:
Oil Pumping
Type:
Heavy Walled Sucker Rod Pump
Barrel Material:
Medium Carbon Steel AISI 1045
Plunger Material:
Medium Carbon Steel AISI 1045
Warranty Term:
One Year
Standard:
API 11AX
Application:
Oil Pumping
Type:
Heavy Walled Sucker Rod Pump
Barrel Material:
Medium Carbon Steel AISI 1045
Plunger Material:
Medium Carbon Steel AISI 1045
Warranty Term:
One Year

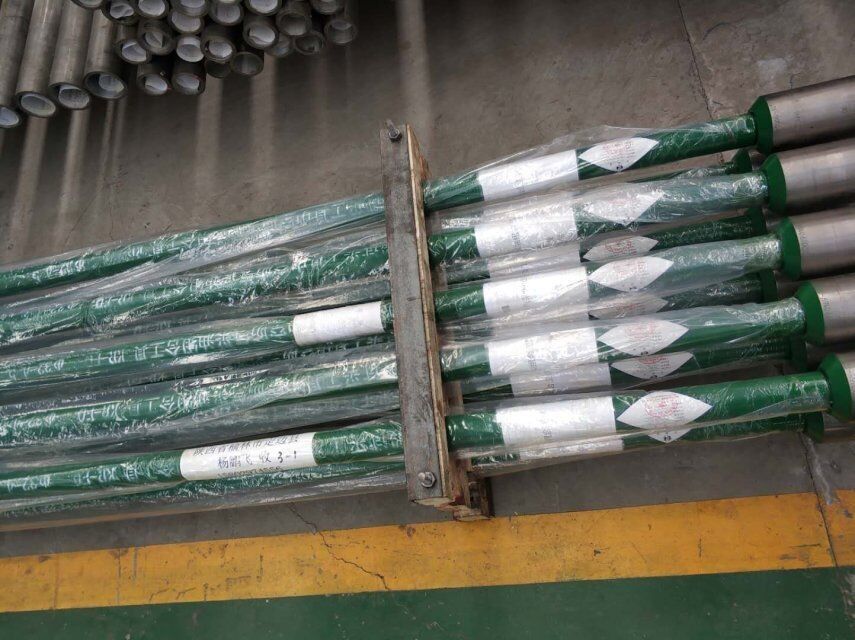

Chrome Plated Barrel Heavy Walled Suker Rod Pump

Chrome Plated Barrel Heavy Walled Sucker Rod Pump



Heavy Walled Sucker Rod Pump Description



Heavy walled sucker rod pump is stronger than the thin walled rod pump. This kind of rod pump is also equipped with a support joint, support joint connected on the tubing string, and it is together with the tubing string down to the bottom. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint by external force, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work.When inspection and maintenance pump,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple. Heavy walled rod pump is endurable.



Technical parameter list:



Specification Pump diameter (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
20-125RWBM Ø31.75 2.1-10.4 0.3-8.0 1.2-9.0 0.3-0.9 2-3/8”
25-150RWBM Ø38.10 2-7/8”
25-175RWBM Ø44.45 2-7/8”
30-225RWBM Ø57.15 3-1/2”



Features


1. It is suitable for corrosion and small amount of sand and gas, deep Wells, such as complex well conditions, the use of safe, stable performance and wide application.
2. Under operation easy to operate, economical and practical, it can reduce oil field operation cost by more than 30%.
3. A kind of endurable rod pump.

Mechanical Propertie



Rod pump are suspended inside the tubing with the support joint ,it is suitable for low temperature of deep well and deviated well drilling, good corrosion resistant effect. easy to operate, economical and practical, it can reduce oil field operation cost by more than 50%.



Chrome Plated Barrel Heavy Walled Suker Rod Pump 0
