API 11AX 28mm Oilfield Pump Parts Spray Metal Plunger

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API，ISO，QHSE

Model Number: ZS

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 25 workdays

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1500 pcs per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                API 11AX Oilfield Pump Parts, API 11AX Spray Metal Plunger, 28mm Spray Metal Plunger


Product:	API 11AX Oilfield Pump Spray Metal Plunger	Material:	AISI1045 Steel
Application:	Pump Parts	Warranty:	12 Months
Standard:	API11AX	Coating:	Spray Metal

Product:	API 11AX Oilfield Pump Spray Metal Plunger
Material:	AISI1045 Steel
Application:	Pump Parts
Warranty:	12 Months
Standard:	API11AX
Coating:	Spray Metal

API 11AX 28mm Oilfield Pump Parts Spray Metal Plunger

API 11AX oilfield sucker rod pump plunger

In the upper stroke, the plunger is on the bottom of the tubing pump. Because the hydraulic pressure from the uper tubing, both up and traveling valves will close, When the plunger go up, the stationary valve open and oil will go through the pump, since the bottom pressure is higher than the uper pressure, then the fluid will be forced to go through the stationary valve and flow into the tubing.In the down stroke,the traveling valve open and the presure drive the oil go into the plunger from the side holeof the extractor, then go into the tubing.

Features

Long life span
Corrosion resistance is strong,
Customized the product size
Mechanical properties, surface finish and dimensional accuracy is higher than the standard requirements.

Technical parameters

size(mm)	OD mm (-0.013-0mm)	Length m (+/-6.35mm)	Note
Ø28	Ø26.99	<=6.6m	PL<2.1,Straightness measurement value is less than0.03mm/ft；PL≥2.1m,Straightness measurement value is less than0.18mm/ft
Ø32	Ø31.75
Ø38	Ø38.10
Ø44	Ø44.45
Ø50	Ø50.80
Ø57	Ø57.15
Ø63	Ø63.50
Ø70	Ø69.85
Ø95	Ø95.25

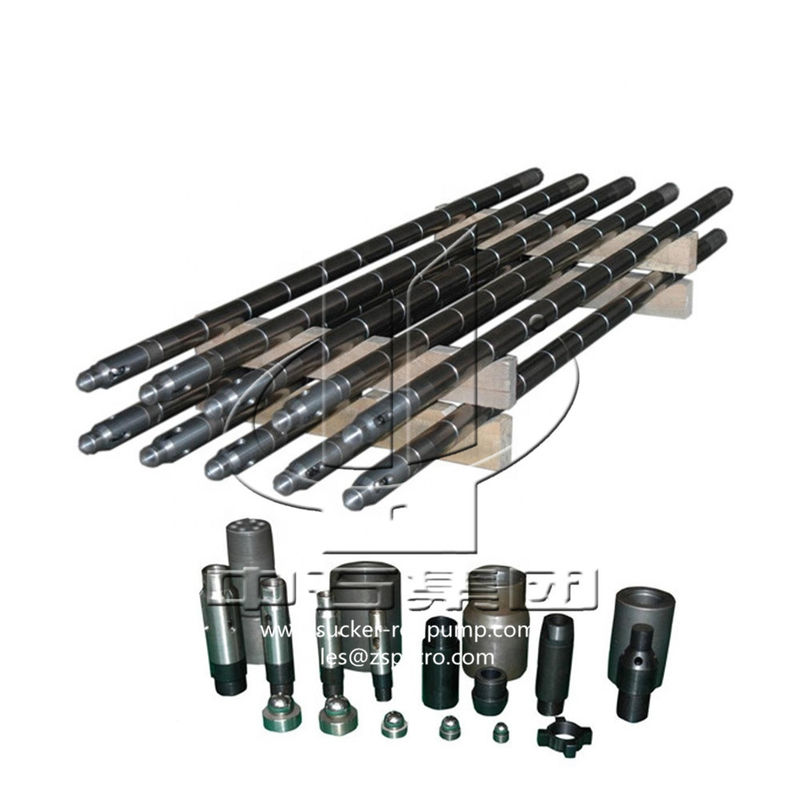

API 11AX 28mm Oilfield Pump Parts Spray Metal Plunger 0
