Product Details:
Payment & Shipping Terms:
|
| Usage: | Oil Field Product | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Color: | Blue Or As Requirement | Processing Type: | Forging,Casting,Other |
| Material: | Carbon Steel,High Manganese Steel,alloy Steel,Inside Are Aluminum Alloy | Type: | Float Shoe And Float Collar |
| High Light: | Oilfield Casing Float Shoe,Carbon Steel Cement Float Equipment,Float Oilfield Cementing Equipment |
||

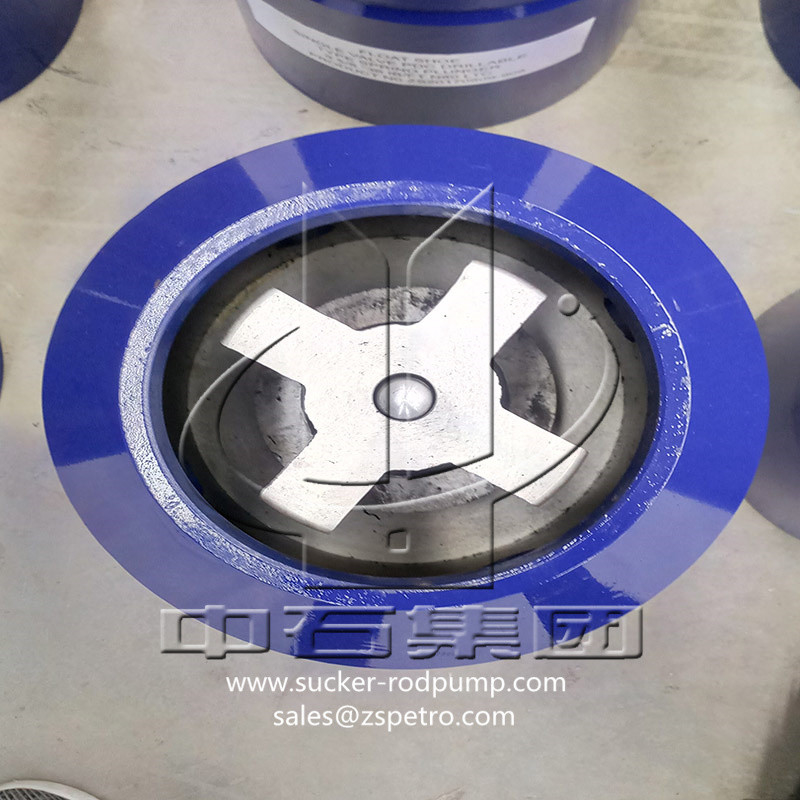

Float collar and shoe introduction
Float collar and floate shoe is a kind of casing guide shoe or coupling that can produce buoyancy. Due to the high temperature resistance, good sealing and drillability and convenient connection of float collar and float shoe, they can replace guide shoes, casing shoes, etc. Float collar and shoe can be used not only for general technical casing and reservoir casing, but also for deep wells, ultra deep wells and special process wells.
Application of Single Valve Float Collar and Float Shoe
Float Collar and Float Shoe serves as the backbone of casing equipment used during primary cementing operations. It guides the casing to total depth and prevents contaminated mud from entering the casing. Also it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures greater accuracy of cement slurry displacement.
Parameter of Single Valve Float Collar and Float Shoe:
| Name | Size(in) | Bore O.D.(in) | Bore I.D.(in) | Min Bore | Thread Type | lb(in2) |
| Parameter(in) | ||||||
| Float Collar | 5 1/2" | 6" | 4 3/4" | 2" | 5 1/2” LCSG | 4351 |
| 7" | 7 5/8" | 6 1/4" | 2 3/8" | 7" LCSG | 3626 | |
| 9 5/8" | 10 5/8" | 8 5/8" | 2 3/8" | 9 5/8" LCSG | 3626 | |
| 13 3/8" | 14 3/8" | 12 3/8" | 2 3/8" | 13 3/8" LCSG | 3626 | |
| Float Shoe | 5 1/2" | 6" | 4 3/4" | 2" | 5 1/2" LCSG | 4351 |
| 7" | 7 5/8" | 6 1/4" | 2 3/8" | 7" LCSG | 3626 | |
| 9 5/8" | 10 5/8" | 8 5/8" | 2 3/8" | 9 5/8" LCSG | 3626 | |
| 13 3/8" | 14 3/8" | 12 3/8" | 2 3/8" | 13 3/8" LCSG | 3626 |
Company information
Puyang Zhongshi Group co., Ltd. was founded in 1996, which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 60 million yuan, with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff. We have competitive price of our main products like: subsurface sucker rod pump, sucker rod ,drill rod ,pumping unit, cementing tools, wellhead (Christmas Tree), etc, with certificates of API11AX,API11E,API10D,API6A,API5CT,ISO14001 and ISO9001 approved.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
