Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API ,ISO ,QHSE
Model Number: Wheeled Rod Guides
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: exported packing
Delivery Time: 2weeks
Payment Terms: T/T
Supply Ability: 1000pcs
Type: |
Wheeled Rod Guides |
Size: |
1 1/8",3/4",1",5/8"-1-1/8" |
Grade: |
D,KD,HY,K,HL |
Material: |
Alloy Steel,AISI 4130 |
Length: |
25-30ft,. Or Customized |
Product Name: |
Alloy Steel Sucker Rod |
Type: |
Wheeled Rod Guides |
Size: |
1 1/8",3/4",1",5/8"-1-1/8" |
Grade: |
D,KD,HY,K,HL |
Material: |
Alloy Steel,AISI 4130 |
Length: |
25-30ft,. Or Customized |
Product Name: |
Alloy Steel Sucker Rod |

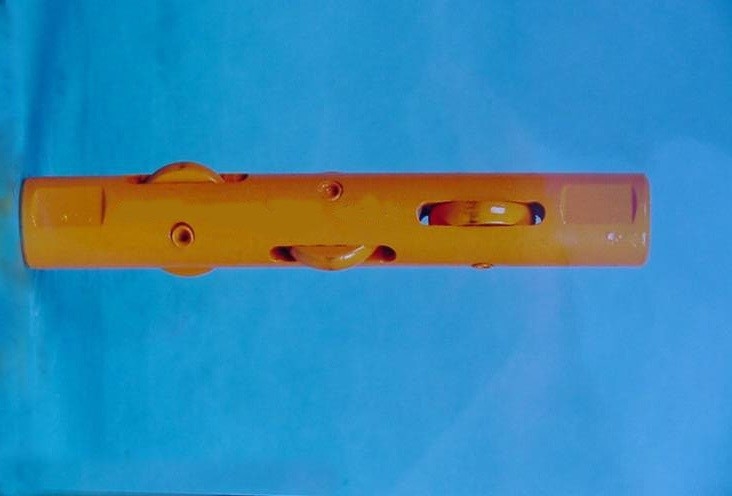

API Wheeled Rod Guides For Sucker Rod & Tubing Roller Centralizer
Tech Parameter
| Specification | DIMENSIONS(INCH) | ||
| Diameter | Length | Length of the groove | |
| 5/8''ROD/2-3/8''TUBING | 1.50 | 27 | 1.80 |
| 3/4''ROD/2-3/8''TUBING | 1.50 | 27 | 1.80 |
| 5/8''ROD/2-7/8''TUBING | 1.50 | 27 | 2.25 |
| 3/4''ROD/2-7/8''TUBING | 1.50 | 27 | 2.28 |
| 7/8''ROD/2-7/8''TUBING | 1.625 | 27 | 2.28 |
| 1''ROD/2-7/8''TUBING | 2.0 | 29 | 2.28 |
| 3/4''ROD/3-1/2''TUBING | 1.50 | 31 | 2.75 |
| 7/8''ROD/3-12''TUBING | 1.625 | 31 | 2.75 |
| 1''ROD/3-1/2''TUBING | 2.0 | 31 | 2.75 |
Temperature Caution
Standard models are for applications in wellbore temperature up to 175°F. (fitted with glass-fiber reinforced nylon 6 wheels), For service in higher temperature, Special metal wheels are used.
Materials
Guide/Coupling Body
Standard guide/coupling bodies are machined from 35CrMo.
Special Material
Other metals such as steel are available on Special 'order to meet some
specifications for extra strength and/or corrosion resistance,
Wheel and Roll Pins
Wheels are set on stainless Steel journals and roll pine, Standard wheels, for applications up to 175°F are made of glass-fiber reinforced nylon 6
