Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Oilfield Solids Control Industrial Centrifugal Pumps |
Capacity: |
240-260 M3 |
120m3/h: |
1450/1750 |
Voltage: |
220V/380V/400v/415v |
Application: |
Transferring Drilling Fluid Or Industrial Suspension Slurry |
Product: |
Oilfield Solids Control Industrial Centrifugal Pumps |
Capacity: |
240-260 M3 |
120m3/h: |
1450/1750 |
Voltage: |
220V/380V/400v/415v |
Application: |
Transferring Drilling Fluid Or Industrial Suspension Slurry |

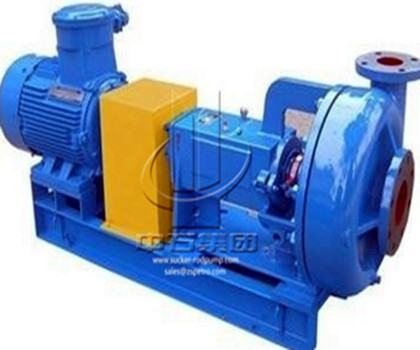

Oilfield Solids Control Industrial Centrifugal Pumps
Compared with the general pump, our pump is with excellent performance, high traffic, high temperature, long service life, easy maintenance, high reliability and remarkable energy saving characteristics.
Oilfield Solids Control Industrial Centrifugal Pumps Features :
Oilfield Solids Control Industrial Centrifugal Pumps Specification
| Model | Flow | Lift | Efficiency | NPSH | Power | Speed | Dimension | Weight | |
| m3/h | GPM | (m) | (%) | (m) | (kW) | (rpm) | (mm) | (kg) | |
| SB8x6-14 | 320 | 1408 | 40 | 65 | 4 | 75 | 1480 | 1980×660×1030 | 1105 |
| SB8x6-13 | 290 | 1276 | 33 | 64 | 4.5 | 55 | 1480 | 1910×660×930 | 945 |
| SB6x5-14 | 200 | 880 | 40 | 62 | 3 | 55 | 1480 | 1870×570×930 | 900 |
| SB6x5-13 | 180 | 792 | 34 | 60 | 3 | 45 | 1475 | 1820×570×830 | 765 |
| SB6x5-12 | 160 | 704 | 30 | 60 | 3 | 30 | 1470 | 1740×570×830 | 700 |
| SB5x4-14 | 120 | 528 | 40 | 56 | 4.6 | 37 | 1475 | 1770×480×830 | 710 |
| SB5x4-13 | 90 | 396 | 40 | 56 | 4.5 | 30 | 1470 | 1710×480×830 | 650 |
| SB5x4-12 | 90 | 396 | 30 | 56 | 4.5 | 22 | 1470 | 1650×480×830 | 600 |
| SB4x3-13 | 50 | 220 | 40 | 48 | 4.5 | 18.5 | 1470 | 1610×500×750 | 560 |
| SB4x3-12 | 45 | 198 | 30 | 47 | 4 | 15 | 1460 | 1570×500×750 | 510 |
| SB3x2-13 | 25 | 110 | 35 | 40 | 3 | 11 | 1460 | 1470×480×750 | 450 |
| SB3x2-12 | 23 | 101 | 29 | 39 | 3m | 7.5 | 1440 | 1360×480×700 | 400 |
| SB3x2-11 | 20 | 88 | 23 | 39 | 3m | 5.5 | 1440 | 1320×480×700 | 390 |
| SB8x6-12 | 335 | 1474 | 43 | 66 | 4.8 | 75 | 1780 | 1980×660×1030 | 1105 |
| SB6x5-12 | 196 | 862 | 48 | 61 | 3 | 55 | 1780 | 1870×570×930 | 900 |
| SB5x4-14 | 149 | 656 | 61 | 58 | 4.6 | 45 | 1760 | 1800×480×830 | 715 |
| SB5x4-12 | 120 | 528 | 40 | 58 | 4.6 | 37 | 1760 | 1770×480×830 | 710 |
| SB5x4-11 | 112 | 493 | 45 | 57 | 4.2 | 30 | 1760 | 1710×480×830 | 650 |
| SB5x4-10 | 105 | 462 | 30 | 57 | 4 | 22 | 1750 | 1650×480×830 | 600 |
| SB4x3-12 | 55 | 242 | 46 | 48 | 4 | 18.5 | 1750 | 1610×500×750 | 560 |
| SB4x3-11 | 54 | 238 | 35 | 47 | 4 | 15 | 1750 | 1570×500×700 | 510 |
| SB3x2-12 | 28 | 123 | 45 | 40 | 3.1 | 11 | 1750 | 1370×480×700 | 450 |
| SB3x2-11 | 25 | 110 | 35 | 41 | 3.1 | 7.5 | 1750 | 1360×480×700 | 400 |
|
Remark: 1.The motor power of centrifugal pump chosen is according to drilling mud specific gravity 1.2g/cm3. |
|||||||||
