One Piece Oilfield Pump Plungers Grooved Spray Metal Carbon Steel With Pin End

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: ZS

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 10000pcs/month

Get Best Price
High Light:

One Piece Oilfield Pump Plungers

,

Spray Metal Pump Oilfield Pin End

,

Spray Metal Pump Plungers Pin End

Product Name:
Pump Plunger
Surface Coating:
Spray Metal, Chrome Plated
Standard:
API 11AX
Application:
Sucker Rod Pump Parts
Material Of Two Ends:
As Requirements
Material:
45# Carbon Steel
Length:
Standard Or As Requirements
Parts Code:
P
Product Name:
Pump Plunger
Surface Coating:
Spray Metal, Chrome Plated
Standard:
API 11AX
Application:
Sucker Rod Pump Parts
Material Of Two Ends:
As Requirements
Material:
45# Carbon Steel
Length:
Standard Or As Requirements
Parts Code:
P
One Piece Oilfield Pump Plungers Grooved Spray Metal Carbon Steel With Pin End

API 11AX Certificated One Piece Plungers Grooved Spray Metal 45# Carbon Steel With Pin

Grooved Plungers in Rod Pump Description


The metal spray-welded plunger is a key component of the rod pump. It moves up and down to extract oil from underground wells.

Processing technology code:

1045 Steel Chrome Plated (A1),

1045 Steel Double Chrome Plated (A2)

1045 steel spray (B1),

1045 steel spray (B2),


Technical Specifications



Model Part No. API No. Mark
P21A P21A-106(XX)-L P21-106 Plunger, Pin End,
One Piece
P21A-125(XX)-L P21-125
P21A-150(XX)-L P21-150
P21A-175(XX)-L P21-175
P21A-200(XX)-L P21-200
P21A-225(XX)-L P21-225
P21A-250(XX)-L P21-250
P21I P21I-106(XX)-L P21-106 Plunger, Pin End,
One Piece, inclined plane
P21I-125(XX)-L P21-125
P21I-150(XX)-L P21-150
P21I-175(XX)-L P21-175
P21I-200(XX)-L P21-200
P21I-225(XX)-L P21-225
P21I-250(XX)-L P21-250
P21I-275(XX)-L P21-275
P21I-325(XX)-L
P21I-375(XX)-L P21-375
P22 P22-125(XX)-L P22-125 Plunger,
Assembled
P22-150(XX)-L P22-150
P22-175(XX)-L P22-175
P22-200(XX)-L P22-200
P22-225(XX)-L P22-225
P22-250(XX)-L P22-250
P22-275(XX)-L P22-275
P23 P23-175(XX)-L P23-175 Plunger,
Box End
P23-225(XX)-L P23-225
P23-275(XX)-L P23-275
P23-375(XX)-L P23-375


Note:



1)“XX” is Material identification symbol;

2)L is standard strength for plunger;

3)The outer surface of the plunger can be processed with annular grooves according to user needs;

4)Two ends are monel connector.

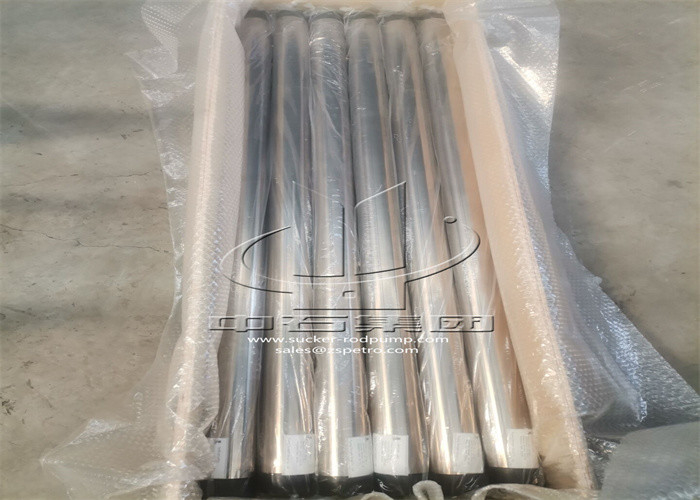

Photo:

One Piece Oilfield Pump Plungers Grooved Spray Metal Carbon Steel With Pin End 0
