Home > products > Sucker Rod Pump > Thin Walled Sucker Rod Pump Rw Model Cup Anchor AISI 1045 Steel

Thin Walled Sucker Rod Pump Rw Model Cup Anchor AISI 1045 Steel

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: Sucker rod pump

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price
High Light:

Rw Model Cup Anchor Rod Pump

,

Thin Walled Oil Well Sucker Rods

,

AISI 1045 Steel Oil Plunger Pump

Pump Model:
RW
Barrel Type:
Thin Walled
Barrel Material:
AISI 1045 Steel
Barrel Coating:
Chrome Plated
Plunger Material:
AISI 1045 Steel
Plunger Coating:
Spray Metal
Anchor:
Cup Anchor
Model:
From 20-125 To 30-250
Pump Model:
RW
Barrel Type:
Thin Walled
Barrel Material:
AISI 1045 Steel
Barrel Coating:
Chrome Plated
Plunger Material:
AISI 1045 Steel
Plunger Coating:
Spray Metal
Anchor:
Cup Anchor
Model:
From 20-125 To 30-250
Thin Walled Sucker Rod Pump Rw Model Cup Anchor AISI 1045 Steel

RW Model Cup Anchor Thin Walled Sucker Rod Pump



RW thin walled sucker rod pump description:



API pump and special pump of Puyang Zhongshi Group

RHAC, RHBM, RHAM , RTH(B)C, TH(B)M, RWBM, RWBC, RWAM, RWAC RHBM, RHBC



Basic characters of pump parts:

The inner surface of the pump barrel is processed with carbonization quench and chrome plating technology

The plunger surface is processed with thermal metal spraying technology

The pump meets the requirement of long stroke, high speed and deep producing

It has the advantages of high pumping efficiency, large displacement, wear and corrosion resistance, long operation and easy repairing.

It accords with API SPEC 11AX standard, and has the certificate of authority to use the official API monogram.



RW thin walled pump technical specification:



Pump model Pump diameter

Barrel length

(ft)

Plunger length

(ft)

Stroke length

(ft)

Extension length

(ft)

Tubing size

EUE/NUE

Sucker rod

20-125RWAM Ø31.75

2.1-10

0.3-8

1.2-9

/

2-3/8” 5/8” 3/4”
20-125RWAC
20-125RWBM
20-125RWBC
20-150RWAM Ø38.10
20-150RWAC
20-150RWBM
20-150RWBC
25-200RWAM Ø50.80         2-7/8”
25-200RWAC
25-200RWBM
25-200RWBC
30-250RWAM Ø63.50         3-1/2”
30-250RWAC
30-250RWBM



Features:
1. Have cup seating and mechanical seating, mechanical seating is suitable for high temperature oil well
2. The top anchored pump with stationary barrel is suitable for sandy wells.
3. The bottom anchored pump with stationary barrel is suitable for deep wells.

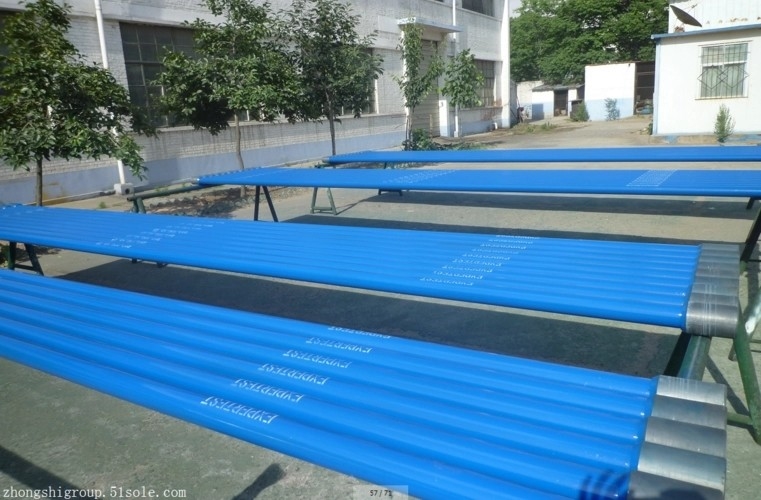

Sucker rod pump packing:



Thin Walled Sucker Rod Pump Rw Model Cup Anchor AISI 1045 Steel 0
