Heavy Wall Well Pump Tubing Mechanical Seating API

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: TH(B)M

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price
High Light:

Mechanical Seating Well Pump Tubing API

,

Carbon Steel Well Tubing

,

API Heavy Wall Tube Well Pump

Pump Type:
Tubing Pump
Seating Type:
Mechanical Seating
Seating Location:
Bottom
Pump Barrel:
Heavy Wall
Oil Well:
Deep Oil Well
Small Parts Material:
Carbon Steel
Pump Type:
Tubing Pump
Seating Type:
Mechanical Seating
Seating Location:
Bottom
Pump Barrel:
Heavy Wall
Oil Well:
Deep Oil Well
Small Parts Material:
Carbon Steel
Heavy Wall Well Pump Tubing Mechanical Seating API

Heavy Wall Mechanical Seating API Well Pump Tubing



Heavy wall mechanical seating tubing pump description:


For heavy wall tubing pump, the barrel is put in the well to the designed depth with tubing. And then put the plunger into the barrel with sucker rod. Given the tubing size, the bore of the tubing pump is larger than that of the rod pump, so the pump rate is higher.

According to seating mode, the rod pump can be divided into three types: THC pump (Stationary Heavy Wall, Cup Seating, Tubing pump), THM pump (Stationary Heavy Wall Mech. Seating, Tubing Pump) and THD pump.
Operating principle of tubing pumps:The pump barrel assembly directly fixed on a tubing string. the plunger assembly connected on the sucker rod string ,and with the up and down reciprocating motion, so as to realize the production process. Its advantage lies in: in the process of oil production, when the traveling valve and fixed valve side problems arise,valve side can be proposed by the sucker rod, piston and extractor , don’t put the whole pump and tubing string out of the well, reduce the work intensity and the operation cost.


Sucker rod pump and tubing pump technical parameters:

  basic technical parameters
Type Diameter(mm) Barrel Length (m) Stroke Range (m) Length of Extension Pub Joint(m) Thread for Tubing(in)
Rod pumps 31.8

2.1
2.4
2.7

3.0
3.3
3.6
3.9
4.2
4.5
4.8
5.7
6.0
6.6
7.3
9.1

1.5-6 0.3
0.6
0.9
2 3/8
  38.1       2 7/8
  44.45       2 7/8
Tubing
pump
31.8   1.5-7.8

0.3
0.6
0.9

2 3/8
  38.1       2 7/8
  44.45       2 7/8
  57.15       2 7/8
  69.85       2 7/8 3 1/2
  82.55       3 1/2
  95.25       3 1/2

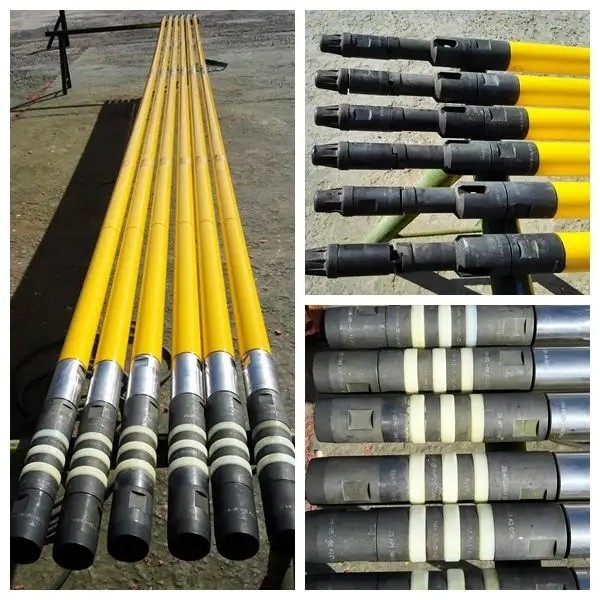

Photo for oil well tubing pump delivery:
Heavy Wall Well Pump Tubing Mechanical Seating API 0
