Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Type: |
Cement/Poppet-type |
Color: |
Blue Or As Required |
Application: |
Oil And Water Well Cementing Tools |
Working Pressure: |
21Mpa-35Mpa |
Valve: |
Single Type Or Double Type |
Material: |
K-55, L-80, N-80, C-95, T-95, And P110. |
Use: |
Well Drilling |
Certification: |
API |
Type: |
Cement/Poppet-type |
Color: |
Blue Or As Required |
Application: |
Oil And Water Well Cementing Tools |
Working Pressure: |
21Mpa-35Mpa |
Valve: |
Single Type Or Double Type |
Material: |
K-55, L-80, N-80, C-95, T-95, And P110. |
Use: |
Well Drilling |
Certification: |
API |

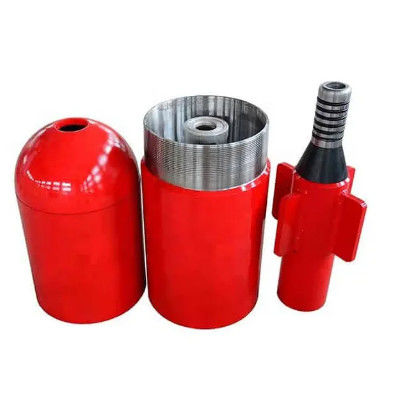

Float shoes contain a backpressure valve that prevents fluids from entering the casing while the pipe is lowered into the hole and prevents cement from flowing back into the casing after placement, while enabling circulation down through the casing.
Float collars are placed one to three joints above the guide shoe or float shoe. They provide a seat for the cement plugs, the bottom plug pumped ahead of the cement and the top plug behind the full volume of slurry. Once seated, the top plug shuts off fluid flow and prevents over-displacement of the cement. The space between the float shoe and the float collar provides a containment area to entrap the likely-contaminated fluids from the wiping action of the top cementing plug, securing the contaminated fluid away from the shoe where a strong cement bond is of primary importance. Float collars include a backpressure valve and serve basically the same function as the float shoe.
Technical parameter
Specification(In) | OD(MM) | Total Length | ID(MM) | Min.Dia(mm) | Connection Type | Working Pressure | |
Float Collar | 5" | 141.3 | 500 | 110 | 50 | BTC/LTC/BCSG | 35 |
5 1/2" | 153.67 | 530 | 112 | 55 | BTC/LTC/BCSG | 35 | |
7" | 194.46 | 586 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
9 5/8" | 270 | 720 | 225 | 77 | BTC/LTC/BCSG | 35 | |
13 3/8" | 365 | 720 | 319 | 77 | BTC/LTC/BCSG | 35 | |
20" | 533.4 | 720 | 475 | 77 | BTC/LTC/BCSG | 35 | |
Float Shoe | 5" | 140.3 | 495 | 110 | 50 | BTC/LTC/BCSG | 35 |
5 1/2" | 153.67 | 514 | 112 | 55 | BTC/LTC/BCSG | 35 | |
7" | 194.46 | 533 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
9 5/8" | 269.88 | 550 | 225 | 77 | BTC/LTC/BCSG | 35 | |
13 3/8" | 339.7 | 550 | 319 | 77 | BTC/LTC/BCSG | 35 | |
20" | 534 | 652 | 475 | 77 | BTC/LTC/BCSG | 35 |
FAQ
A: We are factory.
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance.
