Rubber Material Oilfield Cementing Tools Plug Aluminum Inside For Casing

Rubber Material Oilfield Cementing Tools Plug Aluminum Inside For Casing
Rubber Material Oilfield Cementing Tools Plug Aluminum Inside For Casing

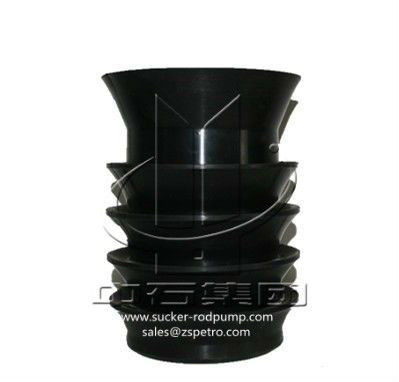

Large Image :  Rubber Material Oilfield Cementing Tools Plug Aluminum Inside For Casing

Product Details:

Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Detailed Product Description
Type: Conventional Type Material: Rubber
Use: Well Drilling Core Inside: Aluminum Inside
Temperature: -30℃ To 150℃ Working Pressure: ≥15MP
High Light:

industrial rubber cement heads

,

cement wiper plug

Oilfield Cementing Plug for Casing



Conventional cementing plug can be divided into two types according to its use: upper cementing plug and lower cementing plug.(rubber plug, also known as rubber plug, can be used for single plug cementing)


Features
  • Temperature with Aluminum core is up to 200 degree Fahrenheit.

  • These plugs are completely PDC drillable.

  • The top plug has a solid body that provides positive indication of contact with the landing collar and bottom plug through an increase in pump pressure.

  • Plug can be ordered for higher operating temperature and operation in either synthetic or mud fluids

Specification

Inch size MM O.D(mm) Labial ministry diameter(mm) Main body diameter(mm) Bore Dia
(mm)
Length
(mm)
Rubber Polyurethane Rubber Polyurethane Rubber Polyurethane
101 101~104 96~99 94~97 89~92 77~80 72~75 ≥40 100~190
114 114~116 109~111 108~110 102~105 80~83 75~78
127 127~130 122~125 120~123 115~118 90~93 87~90 ≥50 120~210
140 140~145 135~140 130~ 135 125~130 100~103 97~100
178 178~183 173~175 168~173 163~168 130~135 125~130 ≥70 150~240
194 194~201 189~196 182~189 177~184 145~150 140~145
219 219~223 214~218 210~214 205~209 168~173 163~168 180~260
244 244~249 239~243 234~239 229~234 192~197 187~192
273 273~279 268~273 262~268 257~263 210~214 205~209 220~300
298 298~305 293~297 286~293 281~288 236~243 231~238
340 340~348 335~343 326~334 321~329 264~272 259~267 260~350
508 508~519 503~514 490~501 485~496 424~435 419~430 ≥100 360~450

Rubber Material Oilfield Cementing Tools Plug Aluminum Inside For Casing 0
