API Standard Oil Sucker Rod Stationary Pump Barrel

API Standard Oil Sucker Rod Stationary Pump Barrel
API Standard Oil Sucker Rod Stationary Pump Barrel

Large Image :  API Standard Oil Sucker Rod Stationary Pump Barrel

Product Details:

Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Detailed Product Description
Standard: API 11Ax Processing Type: B1~B6,A1~A6,C3
Product Name: Sucker Rod Pump,Tubing Pumps Type: Rod Pump,RHBM-ARWAC
Plunger Length (ft): 2-24 Length: As Request
High Light:

API Standard Oil Sucker Rod

,

Stationary Barrel Oil Sucker Rod

,

Stationary Barrel SRP Pump

API Standard Stationary Pump Barrel Sucker Rod Pump



Product Description



Sucker rod pumps are categorized according to the API 11AX pump designation.
API-RHAC, Rod, Stationary Heavy Wall Barrel, Cup Top Anchor Pump
API-RHBM, Rod, Stationary Heavy Wall Barrel, Mechanical Bottom Anchor Pump
API-RHBC, Rod, Stationary Heavy Wall Barrel, Cup Bottom Anchor Pump
API-RWAM, Rod, Stationary Thin Wall Barrel, Mechanical Top Anchor Pump
API-RWAC, Rod, Stationary Thin Wall Barrel, Cup Top Anchor Pump
API-RWBM, Rod, Stationary Thin Wall Barrel, Mechanical Bottom Anchor Pump

Rod pump should be installed inside the tubing with the sucker rod. It is not necessary to pull the tubing out of the well when checking the pump, which can make the operation easier and quicker. According to seating mode, the rod pump can be divided into two types: cup hold-down pump and mechanical hold-down pump. According to the anchored position, the rod pump can be divided into top anchor pump and bottom anchor pump (including stationary barrel type and traveling barrel type).



Features:

1. Statioary barrel

2. Suitable for sandy wells
3. Barrel length:8-30ft



Rod pump and tubing pump API specifications list:



API Models mm(in)
Nominal Dia.
m(ft)Plunger
Length
Stroke m m3/d Pump
Constant
Tubing And
Thread
In Sucker
Rod
20-125TH 32(1.25) 1.2-1.8 (4-6) 0.6-7.3 1.14 27/8NU/EU ¾
20-125RHAC/M 32(1.25) 0.6-7.3 1.14 27/8NU/EU ¾
20-125RHBC/M 32(1.25) 0.6-7.3 1.14 27/8NU/EU ¾
20-125RHTC/M 32(1.25) 0.6-7.3 1.14 27/8NU/EU ¾
25-125TH 32(1.25) 0.6-7.3 1.14 27/8NU/EU ¾
25-150RHAC/M 38(1.50) 0.6-7.3 1.64 27/8NU/EU ¾
25-150RHBC/M 38(1.50) 0.6-7.3 1.64 27/8NU/EU ¾
25-150RHTC/M 38(1.50) 0.6-7.3 1.64 27/8NU/EU ¾
20-150TH 38(1.50) 0.6-7.3 1.64 27/8NU/EU ¾
25-150TH 38(1.50) 0.6-7.3 1.64 27/8NU/EU ¾
20-175TH 44(1.75) 0.6-7.3 2.24 27/8NU/EU ¾
25-175RHAC/M 44(1.75) 0.6-7.3 2.24 27/8 ¾
25-175RHBC/M 44(1.75) 0.6-7.3 2.24 27/8NU/EU ¾
25-175RHTC/M 44(1.75) 0.6-7.3 2.24 27/8NU/EU ¾
25-175TH 44(1.75) 0.6-7.3 2.24 27/8NU/EU ¾
25-225TH 57(2.25) 0.6-7.3 3.69 27/8NU/EU ¾
30-275TH 70(2.75) 0.6-7.3 5.50 3½NU/EU 7/8
30-225RHAC/M 57(2.25) 0.6-7.3 3.69 3½ NU/EU ¾
30-225RHBC/M 57(2.25) 0.6-7.3 3.69 3½ NU/EU ¾
30-225RHTC/M 57(2.25) 0.6-7.3 3.69 3½ NU/EU ¾
35-325TH 83(3.25) 0.6-7.3 7.70 4NU/EU 7/8
40-375TH 95(3.75) 0.6-7.3 10.26 4½NU/EU 1

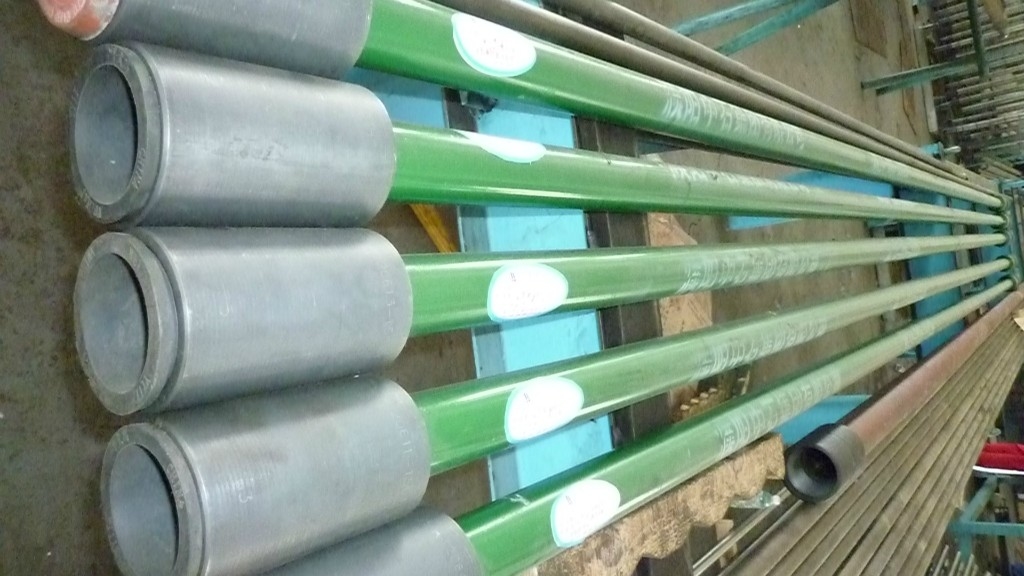

Product photo:



API Standard Oil Sucker Rod Stationary Pump Barrel 0
