Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Name: |
Float Collar&float Shoe |
Application: |
Oil And Water Well Cementing Tools |
Working Pressure: |
21Mpa-35Mpa |
Valve: |
Single Type Or Double Type |
Material: |
K-55, L-80, N-80, C-95, T-95, And P110. |
Certification: |
API |
Condition: |
New |
Thread Type: |
STC, LTC, BTC |
Name: |
Float Collar&float Shoe |
Application: |
Oil And Water Well Cementing Tools |
Working Pressure: |
21Mpa-35Mpa |
Valve: |
Single Type Or Double Type |
Material: |
K-55, L-80, N-80, C-95, T-95, And P110. |
Certification: |
API |
Condition: |
New |
Thread Type: |
STC, LTC, BTC |
Float collar and float shoe are conventional necessary accessories of casing string substructure, usually connected in the bottom of casing string, used to guide the casing string smoothly into the well, to prevent cement back flow and create pressure then cement solidification after Realizing pressure in the cementing well, decrease derrick load, control height of cement plug. This components of the device processed drill able aluminum alloy , finally can directly drill.
Available in 5 1/2” to 20” sizes. Customized sizes are also available.
Applications:In all applications ranging from close tolerance liners to full casing strings.

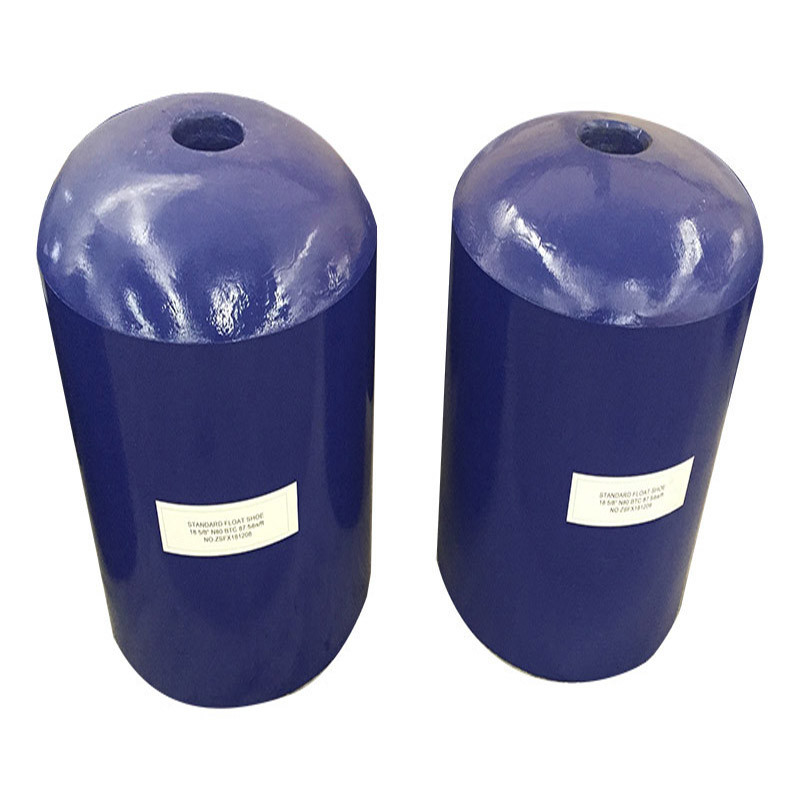

Standard float shoe is provided with round cement nose to deflect offledges or obstructions.
Customizable options including nose types, ports/jets, and ball deflector.
Can be supplied either in Single Valve or in Double valve.
Technical parameter
| Specification(In) | OD(MM) | Total Length | ID(MM) | Min.Dia(mm) | Connection Type | Working Pressure | |
| Float Collar | 5" | 141.3 | 500 | 110 | 50 | BTC/LTC/BCSG | 35 |
| 5 1/2" | 153.67 | 530 | 112 | 55 | BTC/LTC/BCSG | 35 | |
| 7" | 194.46 | 586 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
| 9 5/8" | 270 | 720 | 225 | 77 | BTC/LTC/BCSG | 35 | |
| 13 3/8" | 365 | 720 | 319 | 77 | BTC/LTC/BCSG | 35 | |
| 20" | 533.4 | 720 | 475 | 77 | BTC/LTC/BCSG | 35 | |
| Float Shoe | 5" | 140.3 | 495 | 110 | 50 | BTC/LTC/BCSG | 35 |
| 5 1/2" | 153.67 | 514 | 112 | 55 | BTC/LTC/BCSG | 35 | |
| 7" | 194.46 | 533 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
| 9 5/8" | 269.88 | 550 | 225 | 77 | BTC/LTC/BCSG | 35 | |
| 13 3/8" | 339.7 | 550 | 319 | 77 | BTC/LTC/BCSG | 35 | |
| 20" | 534 | 652 | 475 | 77 | BTC/LTC/BCSG | 35 |
|
FAQ
A: We are factory.
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance.
