Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: RHBM-AC
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SETS/MONTH
Product Name: |
Sucker Rod Pump |
Color: |
Required |
Machine Type: |
Petroleum Machinery |
Standard: |
API, ISO |
Manufacturer: |
Puyang Zhongshi Group |
Usage: |
Oil Production |
Product Name: |
Sucker Rod Pump |
Color: |
Required |
Machine Type: |
Petroleum Machinery |
Standard: |
API, ISO |
Manufacturer: |
Puyang Zhongshi Group |
Usage: |
Oil Production |

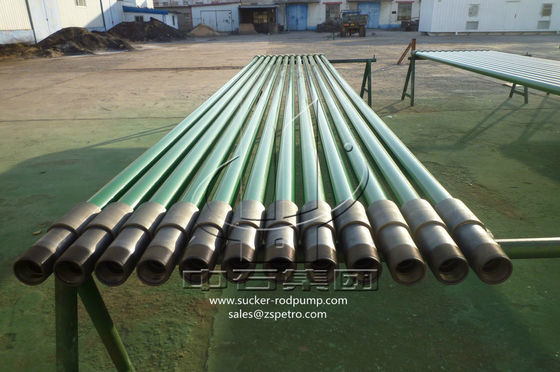

Oilfield Petroleum Machinery RHBM Oil Sucker Pump
1. Product description
The biggest difference between the rod pump and the tube pump is that the tube pump body is directly connected to the tubing string, while the rod pump is connected to the tubing string through a support joint, and the rod pump body is placed inside the tubing.
When inspection and maintenance pump,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple.
2. Technical parameter list
| Specification | Pump diameter (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) | Sucker rod size |
| 15-106RHBC | Ø26.99 | 2.1-10.4 | 0.3-8.0 | 1.2-9.0 | 0.3-0.9 | 1.9” |
CYJ16 CYJ19 |
| 20-125RHBC | Ø31.75 | 2-3/8” | |||||
| 25-150RHBC | Ø38.10 | 2-7/8” | |||||
| 25-175RHBC | Ø44.45 | 2-7/8” | |||||
| 30-225RHBC | Ø57.15 | 3-1/2” |
