Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Model: |
Non Standard Model |
Seating Assembly: |
Mechanical Seating Or Cup Seating |
Plunger Material: |
Carbon Steel |
Plunger Coating: |
Spray Metal |
Barrel Type: |
Heavy Wall Or Thin Wall |
API Certificate: |
API 11AX-0061 |
Model: |
Non Standard Model |
Seating Assembly: |
Mechanical Seating Or Cup Seating |
Plunger Material: |
Carbon Steel |
Plunger Coating: |
Spray Metal |
Barrel Type: |
Heavy Wall Or Thin Wall |
API Certificate: |
API 11AX-0061 |

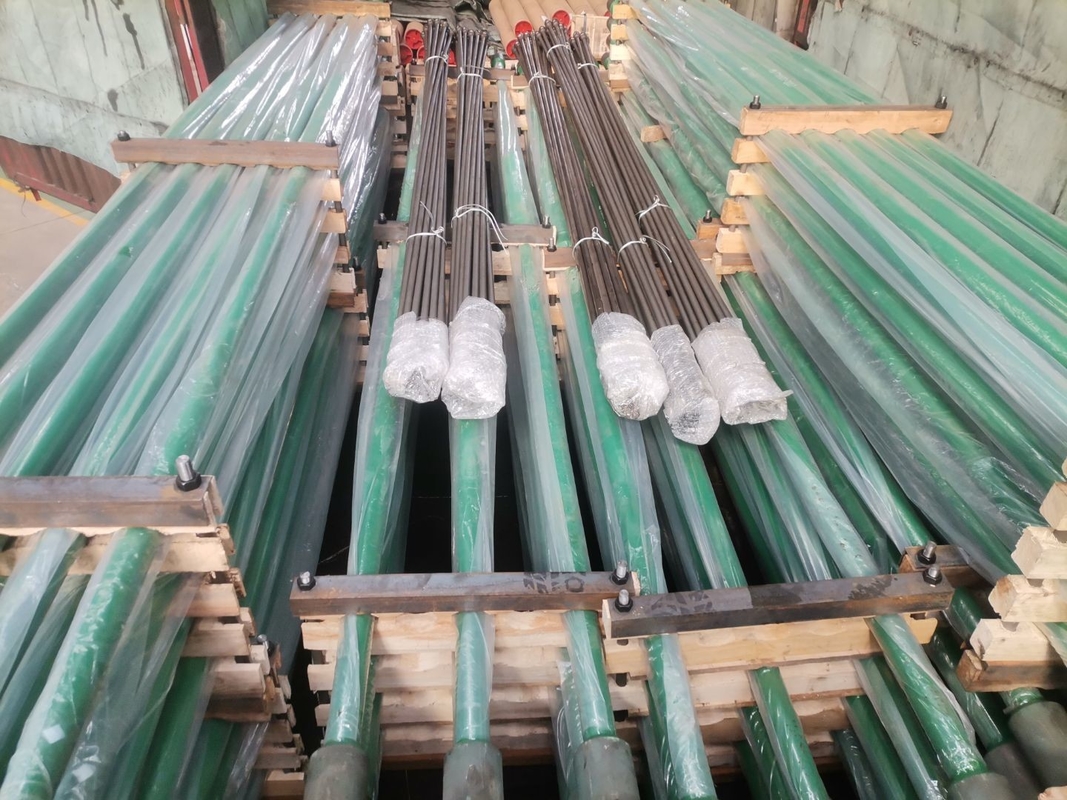

Non Standard Model Sucker Rod Pumps With Spray Metal Plunger
Non standard sucker rod pump Description
Sucker rod pump is equipped with a seating nipple(there are two seating nipples in API-RHBM-AC) , seating nipple connection on the tubing string, down to the bottom of the well with the tubing string.
Plunger assembly connection on the sucker rod string and with the pump overall down to seating nipple position together , pump with fixed inside the seating nipple , Plunger assembly with the sucker rod string up and down reciprocating movement to achieve pumping work.
If the pump appeared quality problem, need not put forward the tubing string, only need put the whole pump forward well through the sucker rod string together , operation is simple.
Rod pump should be installed inside the tubing with the sucker rod. It is not necessary to pull the tubing out of the well when checking the pump, which can make the operation easier and quicker.
API sucker rod pump technical parameters:
| API model | OD of Pump |
Length of Barrel (ft) |
Plunger length (ft) |
Stroke length (ft) |
Extension length (ft) |
Tubing size EUE/NUE |
Sucker rod |
| 20-125RWAM | Ø31.75 |
2.1-10 |
0.3-8 |
1.2-9 |
/ |
2-3/8” | 5/8” 3/4” |
| 20-125RWAC | |||||||
| 20-125RWBM | |||||||
| 20-125RWBC | |||||||
| 20-150RWAM | Ø38.10 | ||||||
| 20-150RWAC | |||||||
| 20-150RWBM | |||||||
| 20-150RWBC | |||||||
| 25-200RWAM | Ø50.80 | 2-7/8” | |||||
| 25-200RWAC | |||||||
| 25-200RWBM | |||||||
| 25-200RWBC | |||||||
| 30-250RWAM | Ø63.50 | 3-1/2” | |||||
| 30-250RWAC | |||||||
| 30-250RWBM |
Features
1. The non-standard model is designed based on the well conditions.
2. Mechanical seating assembly or cup seating assembly
3. Production standard is still based on the API regulations.
