Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API
Model Number: 20/25-106THC
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: T/T, D/P, D/A, L/C, Western Union
Supply Ability: 3000 sets/year
Pump Name: |
Rod Inserted Pump |
Barrel Structure: |
Stationary |
Barrel Wall Type 1: |
Heavy Wall |
Barrel Wall Type 2: |
Thin Wall |
Plunger Type 1: |
Plain Surface |
Plunger Type 2: |
With Sand Slotting |
Power Machine: |
Pumping Unit |
Industry: |
Oil Industry |
Application: |
Oil Production |
Pump Name: |
Rod Inserted Pump |
Barrel Structure: |
Stationary |
Barrel Wall Type 1: |
Heavy Wall |
Barrel Wall Type 2: |
Thin Wall |
Plunger Type 1: |
Plain Surface |
Plunger Type 2: |
With Sand Slotting |
Power Machine: |
Pumping Unit |
Industry: |
Oil Industry |
Application: |
Oil Production |
Stationary heavy wall or thin wall barrel rod inserted pump
Stationary heavy wall or thin wall barrel rod inserted pump description:
While there are only two main types of pumps standardized by API, there are four different types of rod pumps. These are classified by the type of barrel (standing or traveling) and where the pump is anchored (top or bottom).
In the RHBC bottom anchor rod inserted pump, the plunger is directly connected with the sucker rod string, and then they move together. The pump barrel is anchored at the bottom by a bottom seating cup. It is suitable for deep well since the barrel only bears pressure from outside and does not bear tensile load and its clearance change is small. But it is not recommended for sandy wells since there is no circulation for the well fluid around the outside of the barrel so pump may become stuck in the tubing by packed sand.
Because the rod inserted pump barrel can only bear the external hydrostatic pressure rather than the tension load caused by the fluid column weight, there is little change in plunger clearance. This makes the pump suitable for deep wells
Compared with other standard deep well pumps, the pump barrel is less likely to crack or bend under pressure
The RHBC rod inserted pump is suitable for deviated wells. However, care should be taken to avoid wearing between the valve stem guide cage and the valve stem. If the guide cage is too hard, it will wear the valve stem. However, this rod pump cannot be used as a long stroke pump or in sandy oil wells
Sucker Rod Pump Technical Data
| Specification | Thin wall rod pump | Heavy wall rod pump |
| Pump diameter (in) | 1 1/4-2 1/2 | 1 1/4-2 1/2 |
| Plunger length (ft) | 2-24 | |
| Barrel length (ft) | 2-34 | |
| Material |
Barrel: A1~A6, B1~B6, C1~C5, D1~D5, N1~N6 Plunger: B1~B3, C1~C3, D1~D3, E1~E3, F1~F3 |
|

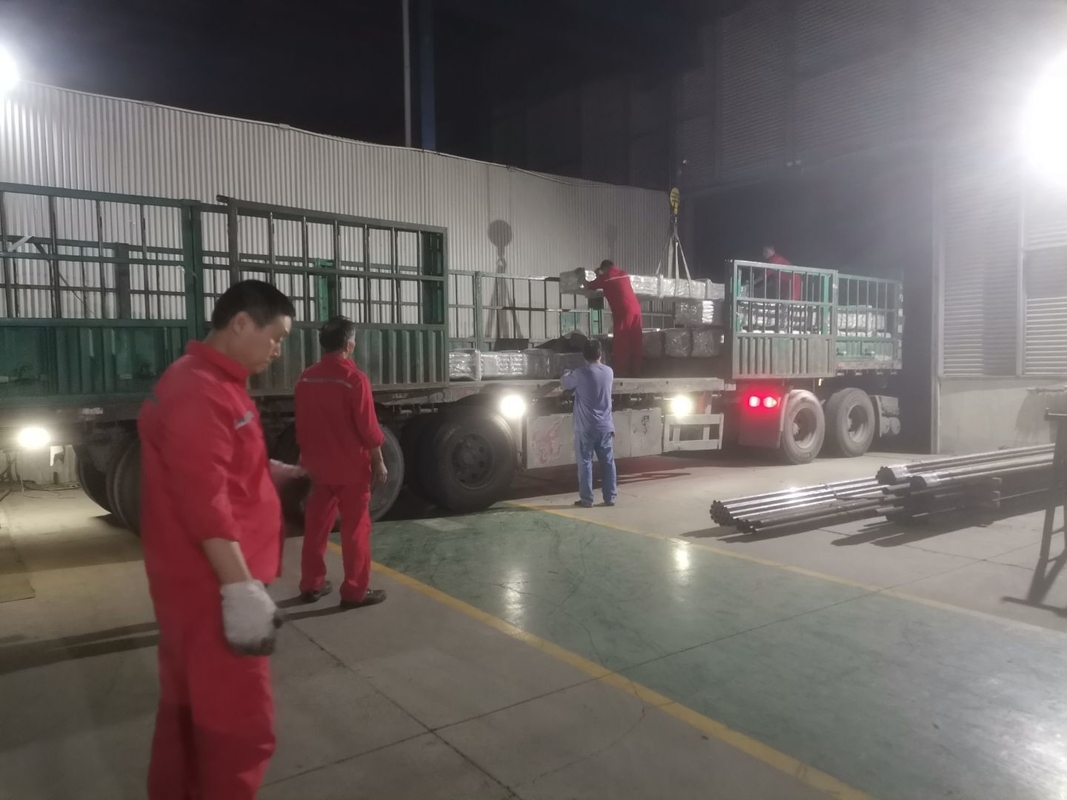

Rod inserted pump packing photo:
