Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API
Model Number: 20/25-106THC
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: T/T, D/P, D/A, L/C, Western Union
Supply Ability: 3000 sets/year
Pump Type: |
Rod Inserted Pump |
Pump Name: |
Sucker Rod Pump |
Another Name: |
Downhole Pump |
Application:: |
Oil Pumping |
Valve Ball & Seat Material 1: |
Stainless Steel |
Valve Ball & Seat 2: |
Tungsten Carbide |
Feature: |
Easy Operation |
Machine Type: |
Petroleum Machinery |
Pump Type: |
Rod Inserted Pump |
Pump Name: |
Sucker Rod Pump |
Another Name: |
Downhole Pump |
Application:: |
Oil Pumping |
Valve Ball & Seat Material 1: |
Stainless Steel |
Valve Ball & Seat 2: |
Tungsten Carbide |
Feature: |
Easy Operation |
Machine Type: |
Petroleum Machinery |
Oil Downhole Fluid Discharged From Guide Cage Flushes Sand Sedimentation Away Rod Inseted Pump
Oil downhole sucker rod series rod inseted pump description:
The RHAC/RHAC series pump barrel is mounted to the top by a bracket. The rod pump is suitable for sand production Wells and oil Wells, due to the discharge of fluids will wash away from guide cage between tubing and pump at the top of the sand will make it easier for pump barrel under the internal pressure caused by the liquid column and the influence of the tensile load, when the piston clearance on the stroke will increase, so do not recommend the use of this kind of top anchor in deep well pump when rod pump operation, The vertical valve at the bottom of the pump is easily immersed in the well fluid, which is suitable for low liquid level Wells. The top anchor mode keeps the pump in free suspension and has self-alignment effect, which is suitable for deviated Wells.
The pump is more suitable for heavy oil Wells than the bottom bolt insertion pump. However, due to the internal pressure and tension caused by the fluid column, the pump barrel is likely to expand and increase the plunger clearance, so it is not suitable for deep Wells.
Rod inserted pump technical data:
| Model | Thin wall rod pump | Thick wall rod pump |
| Pump diameter (in) | 1 1/4-2 1/2 | 1 1/4-2 1/2 |
| Plunger length (ft) | 2-24 | |
| Barrel length (ft) | 2-34 | |
| Material |
Barrel: A1~A6, B1~B6, C1~C5, D1~D5, N1~N6 Plunger: B1~B3, C1~C3, D1~D3, E1~E3, F1~F3 |
|

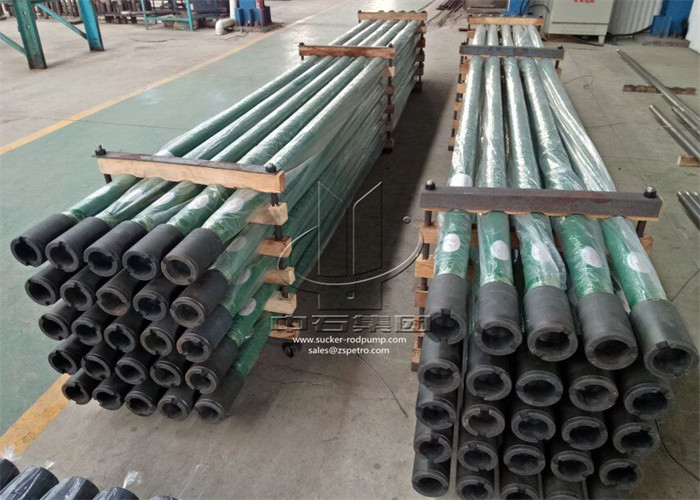

Rod inserted pump delivery photo:
