Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API
Model Number: 4 1/2"-20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 25 work days
Payment Terms: T/T
Supply Ability: 10000Meters/month
Features: |
API Low Pressure Filter Press |
Standard: |
API 5CT |
Material: |
Alloy Steel |
Weight (KG): |
650 |
Structure: |
Seamless |
Steel Grade: |
K55/J55/N80/L80/P110 |
Condition: |
New |
Application: |
Well Pump |
Bend Radius: |
2 In |
Type: |
Tubing |
Features: |
API Low Pressure Filter Press |
Standard: |
API 5CT |
Material: |
Alloy Steel |
Weight (KG): |
650 |
Structure: |
Seamless |
Steel Grade: |
K55/J55/N80/L80/P110 |
Condition: |
New |
Application: |
Well Pump |
Bend Radius: |
2 In |
Type: |
Tubing |

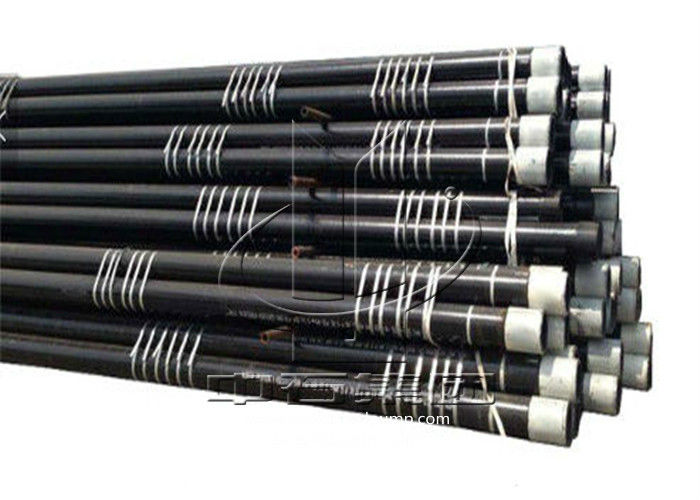

Oilfield 13 3/8" Seamless Casing Pipe With Steel Grades K55 J55 N80 L80 P110
Description of casing pipe:
Casing pipes play a crucial role in oil and gas well construction, providing essential support to the wellbore walls. They are categorized into three types: surface casing, protective casing, and production casing..
| Production name | OCTG 11-3/4" API 5CT steel casing pipe |
| OD size (in) | 4-1/2" ~ 20" |
| Steel grade | J55/K55/N80/L80/P110 |
| Thread type | LTC,STC,BTC |
| Length | R1 (4.88mtr-7.62mtr) R2 (7.63mtr-10.36mtr) R3 (10.37mtr-14.63mtr) |
| Heat treatment | Normalized,Quencher+Temper |
Mechanical properties of casing pipe:
| Grade | Yield Strength | Tensile Strenght | Hardness | Allowable | |||||
| Min | Max | Min | Max | Max | Hardness | ||||
| Psi | Mpa | Psi | Mpa | Psi | Mpa | HRC | BHN | Variation | |
| J55 | 55,000 | 379 | 80,000 | 552 | 75,000 | 517 | - | - | - |
| K55 | 55,000 | 379 | 88,000 | 552 | 95,000 | 655 | - | - | - |
| N80 | 80,000 | 552 | 110,000 | 758 | 100,000 | 689 | - | - | - |
| N80-1 | 80,000 | 552 | 95,000 | 655 | 95,000 | 655 | 23 | 241 | - |
| C90 | 90,000 | 621 | 105,000 | 724 | 100,000 | 689 | 25.4 | 255 | 3 |
| C95 | 95,000 | 655 | 110,000 | 758 | 105,000 | 724 | - | - | - |
| T95 | 95,000 | 655 | 110,000 | 758 | 105,000 | 724 | 25.4 | 255 | 3 |
| P110 | 110,000 | 758 | 140,000 | 965 | 125,000 | 862 | - | - | - |
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
