Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: IOS,API
Model Number: 13 3/8″ to 4 1/2″
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 10000sets/month
Features: |
API Low Pressure Filter Press |
Application: |
Application |
Core Components: |
PLC, Bearing |
Condition: |
New |
Usage: |
Oilfield Drilling Equipment |
Color: |
Customized |
Bow Spring Finish: |
Polished |
Bow Spring Force: |
1000 Lbs |
Coupling Type: |
Integral |
Material: |
Carbon Steel |
Features: |
API Low Pressure Filter Press |
Application: |
Application |
Core Components: |
PLC, Bearing |
Condition: |
New |
Usage: |
Oilfield Drilling Equipment |
Color: |
Customized |
Bow Spring Finish: |
Polished |
Bow Spring Force: |
1000 Lbs |
Coupling Type: |
Integral |
Material: |
Carbon Steel |

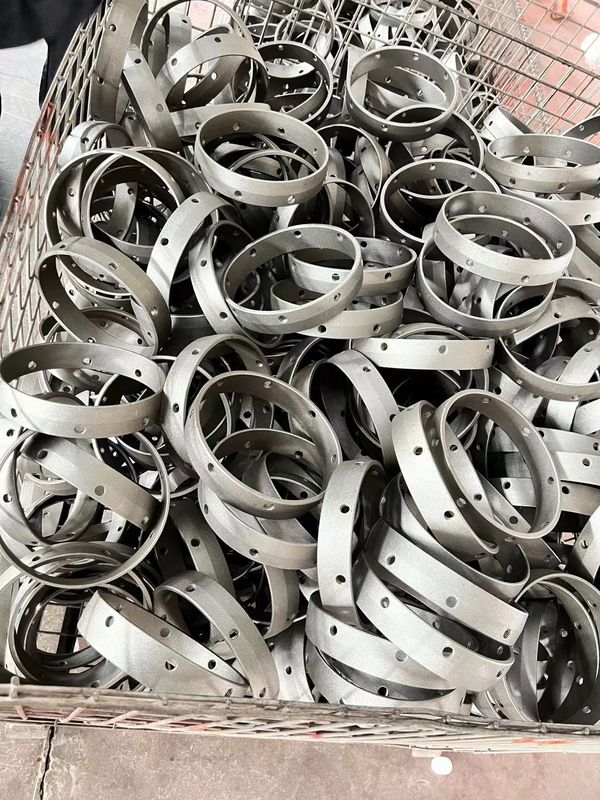

Centralizer Stop Collars
A Centralizer Stop Collar is a device utilized in the cementing process to prevent the displacement or slippage of centralizers or cement baskets on a casing. It goes by various names, such as position ring, stop circular, brake ring, etc. There are three main types of Centralizer Stop Collars: mobile screw-type, fixed screw-type, and buckle-type.
The fundamental role of the Centralizer Stop Collar is to restrict the axial movement of centralizers or cement baskets on the casing. By limiting their movement, it ensures accurate placement and alignment during the cementing process.
To install the mobile screw-type stop collar, you need to slide it over the casing and securely tighten the screws using a wrench.
The fixed screw-type stop collar is installed by placing it around the casing, inserting the screws into their designated holes, and tapping them into place with a hammer.
For the buckle-type stop collar, it is fastened onto the casing by buckling it in place and securing it with pins. Any screws are then tapped into their designated positions using a hammer.
By following these installation methods, you can ensure that Centralizer Stop Collars are properly attached to casings, providing effective support during cementing operations while preventing undesired movement or slippage.
3. Property Parameters of Centralizer Stop Collars:
| Specifications,mm | 13 3/8″ | 10 3/4″ | 9 5/8″ | 8 1/8″ | 7 5/8″ | 7″ | 5 1/2″ | 5″ | 4 1/2″ |
| ID,mm | 338 | 272 | 245 | 206 | 193 | 177 | 139 | 126 | 114 |
| OD,mm | 350 | 284 | 257 | 218 | 285 | 189 | 151 | 138 | 126 |
| Holding Force,KN | 40 | 40 | 40 | 30 | 30 | 30 | 30 | 24 | 24 |
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
