Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API ,ISO ,QHSE
Model Number: sucker rod
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: exported packing
Delivery Time: 2weeks
Payment Terms: T/T
Supply Ability: 1000pcs
Product Name: |
Alloy Steel Sucker Rod |
Grade: |
D,KD,HY,K,HL |
Standard: |
API 11B |
Size: |
3/4",1",5/8"-1-1/8" |
Length: |
25-30ft |
Package: |
Bundle As Per API 11B Standard |
Product Name: |
Alloy Steel Sucker Rod |
Grade: |
D,KD,HY,K,HL |
Standard: |
API 11B |
Size: |
3/4",1",5/8"-1-1/8" |
Length: |
25-30ft |
Package: |
Bundle As Per API 11B Standard |

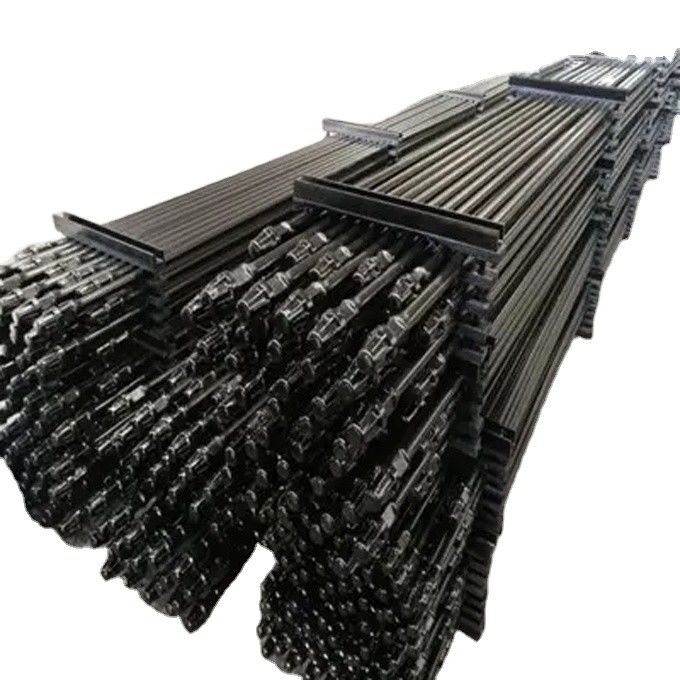

Sucker rods are designed for transmission of translational or rotational motion from ground drive to the well pump for oil extraction. The rods are round cross-section bars whose ends are provided with upset heads and thread.
The rods can be rigged with various centralizers, to protect rods, couplings, and oil well tubing from wear; rods can be additionally provided with mobile scrapers for removal of paraffin deposits. "D" class sucker rods (as per API specification) display enhanced strength and anticorrosion properties, and are highly competitive in terms of quality with the products of world famous manufacturers.
|
Size in (mm) |
Rod Body diameter in (mm) | diameter of ext. thread in (mm) |
Full size Coupling OD mm (in) |
Coupling OD mm (in) |
Wrench square W*L mm (in) | Length series m (ft) |
| 5/8 (16) | 5/8 (15.88) | 15/16 (23.81) | 38.10(1.5) | 31.8 (1.25) | 22.2×31.8 (7/8×1-1/4) | 7.62 (25) |
| 3/4 (19) | 3/4 (19.05) | 1-1/16(26.99) | 41.28(1.625) | 38.1 (1.5) | 25.4×31.8 (1×1-1/4) | 9.14 (30) |
| 7/8 (22) | 7/8 (22.23) | 1-3/16 (30.16) | 46.0(1.812) | 41.3 (1.625) | 25.4×31.8 (1×1-1/4) | 0.6 (2), 1 (3) |
| 1 (25) | 1 (25.40) | 1-3/8 (34.93) | 55.6(2.187) | 50.8 (2) | 33.3×38.1(1-5/16×1-1/2) | 2 (6), 3 (10) |
| 1-1/8 (28) | 1-1/8 (28.58) | 1-9/16 (39.7) | 60.33(2.375) | 57.2 (2.25) | 38.1×41.3 (1-1/2×1-5/8) |
