Product Details:
Payment & Shipping Terms:
|
| Key Words: | High Performance With Top Quality,replacement With Interental Brand | Flow Rate: | 120m3/h |
|---|---|---|---|
| Rotation Speed: | 1450/1750 | Capacity: | 240-260 M3 |
| Motor HP: | 75Kw | Impeller Diameter: | 14 |
| Lift: | 35m | Ex Standard: | ExdIIBt4/IECEX/A-TEX |
| Key Words: | Drilling Centrifugal Pump | ||
| High Light: | water pump replacement parts,impeller pump parts |
||

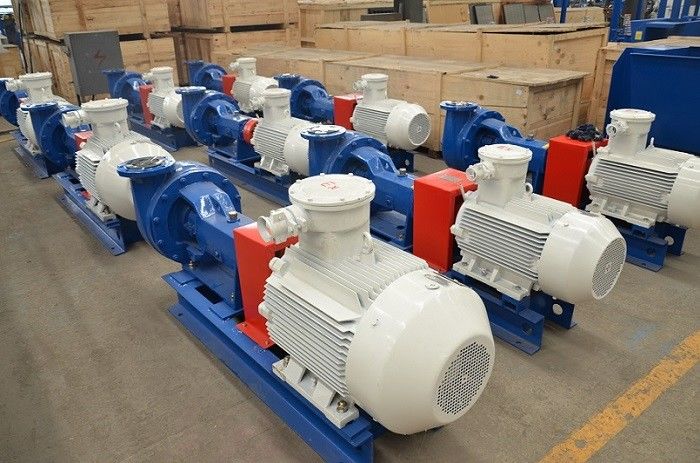

Zhongshi High Performance Centrifugal Pump,centrifugal pump spare parts,pump replacement parts
Introduction
Centrifugal pump is used for transferring slurry or mud or water. All our centrifugal pumps use tungsten carbide mechanical seal, with famous brand Bearing. And spare parts can be totally interchangeable with most of the international Brand pump, which helps customer to source spare parts easily. Open impeller design that lowers axial thrust loads, and make it easier for installation, repair and maintenance.
Centrifugal pump is important equipment used in solids control system, providing drilling fluid to other equipment by its suction and pumping out function, achieving transfer of drilling fluids. Its main working principle is the centrifuging power coming from rotating impeller.
Features of Zhongshi group Centrifugal Pump:
1. The mechanical seal is made of high anti-corrosive alloy. More durable and longer service life.
2. Imported SKF bearing. More assurance on quality.
3. Oil or grease bearing lubrication make bearing more adaptable and long life.
4. Thicker pump shell.
5. Alloy gray iron pump shell, longer life.
6. Selection of alloy cast iron impeller, greater resistance to corrosion.
7. Pump parts can be interchangeable with international brands.
Technical Data of Zhongshi Series Centrifugal Pump
| Type | Rotation speed r/min | Capacity m3/h |
Pressure head/m | Efficiency (%) |
Motor HP. kW |
Weight kg |
| ZSSB10×8×14 | 1450/1750 | 260-300 | 33 | 65 | 75/90 | 1150/1300 |
| ZSSB8×6×14 | 1450/1750 | 240-260 | 33 | 65 | 55/75 | 830/1100 |
| ZSSB8×6×11 | 1450/1750 | 240 | 26 | 65 | 37/45 | 700/750 |
| ZSSB6×5×14 | 1450/1750 | 220 | 28 | 65 | 37/45 | 700/750 |
| ZSSB6×5×11 | 1450/1750 | 200 | 26 | 65 | 30/37 | 655/687 |
| ZSSB5×4×14 | 1450/1750 | 120 | 26 | 65 | 22 | 510 |
| ZSSB4×3×13 | 1450/1750 | 60-80 | 26-30 | 65 | 11/15 | 395/405 |
| ZSSB3×2×13 | 1450/1750 | 40-60 | 25-28 | 65 | 7.5/11 | 335/385 |
Application
Zhongshi centrifugal pump is currently used in city bored piling, oil & gas drilling, Drilling Waste Management, Coal Bed Gas Solids Control System, trenchless HDD, mining, Oil Sludge Dewatering Systems, Oil Mud Seperation, environment protection, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Russian, Egypt, US, Australia, Canada, Europe, Dubai, KSA, India, Indonesia, Thailand, Malaysia and many other countries.
