Name: Durable Oilfield Sucker Rods Barrel With Submersible Stainless Steel API Standard
Brand: Zhongshi
SKU: ZS
Rating: 4.5 (133 reviews)

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: ZS

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 pcs/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                sand control screens, ball valve seat


Standard:	API	Application:	Petroleum Production
Power:	Machanical Energy	Color:	Required
Certificate:	API 11AX	Warranty:	12 Months

Standard:	API
Application:	Petroleum Production
Power:	Machanical Energy
Color:	Required
Certificate:	API 11AX
Warranty:	12 Months

Durable Oilfield Sucker Rods Barrel With Submersible Stainless Steel API Standard

Durable Oilfield Sucker Rods Barrel With Submersible Stainless Steel API Standard

Product Description

Pump barrel is one of the main part of the API sucker rod pump .

Pump barrel processing and material:
Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).

Technical Specifications

Oil and Gas Production Subsurface Sucker Rod Pump(Rod Type)

Specification	Nominal Pump Bore (in)	Plunger Length(ft)	Max.O.D.(mm)	Rod(in)	Tubing(in)	Pump Constant (m3/d)	Stroke (m)
20-112RHBC	1.12	4~6	46.7	3/4	2 3/8	0.92	≤7.5
20-112RHBM			44.7
20-125RHBC	1.25		47.5	3/4	2 3/8	1.14
20-125RHBM			44.7
25-150RHBC	1.5		59.5	3/4	2 7/8	1.64
25-150RHBM			55.6
25-175RHBC	1.75		59.5	3/4	2 7/8	2.24
25-175RHBM			55.6
30-225RHBC	2.25		72.1	3/4	3 1/2	3.69
30-225RHBM			71.7

Features

Mechanical properties, surface finish and dimensional accuracy is higher than the standard requirements.

Corrosion resistance is strong, long service life, product size can be customized.

Pictures

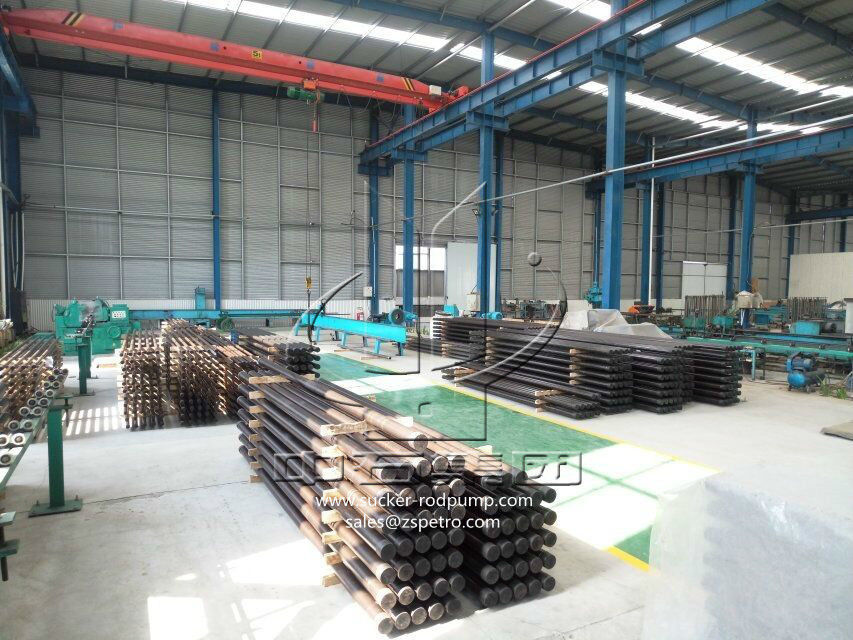

Durable Oilfield Sucker Rods Barrel With Submersible Stainless Steel API Standard 0
