Well Cementing Solid Stemped Spiral Vane Centralizer High Anti-Impact

Well Cementing Solid Stemped Spiral Vane Centralizer High Anti-Impact
Well Cementing Solid Stemped Spiral Vane Centralizer High Anti-Impact

Large Image :  Well Cementing Solid Stemped Spiral Vane Centralizer High Anti-Impact

Product Details:

Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Detailed Product Description
Type: Stemped Solid Type Installation: Slip-on Type
Process: Stemped Vane Type: Spiral
Service: OEM Application: Well Cementing
High Light:

single piece centralizer

,

spiral glider centralizer

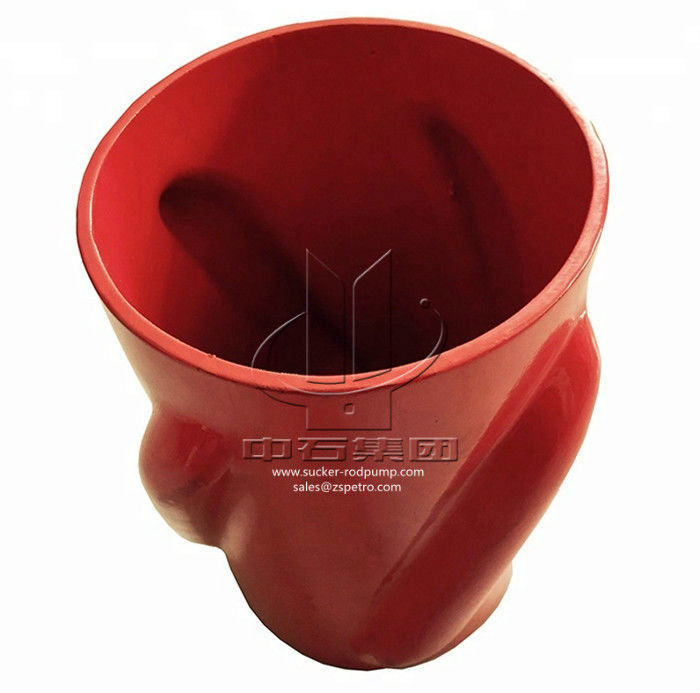

Well Cementing Solid Stemped Spiral Vane Centralizer High Anti-Impact



There are three processed methods of solid rigid centralizer,one is casting,the second is integral punching and end welded by CO2 shielded arc welding,the third is cutted by seamless pipe and the blade is processed by steel plate and then processed by lathe.


Features
  • Stamped Solid Centralizer is designed to provide a positive stand off the casing(we also call it slip on stand off band).

  • This type centralizer provides a bearing surface for lower torque and drag forces, and undergo a special coating to prevent from rust.

  • The blades design can reduce minimum friction when running a casing duo to the smooth profile.

  • Increase flow-by area to optimize mud displacement in vertical,inclined,and horizontal wells.

  • Available in straight or spiral blades, these blades are mechanically formed rather than welded onto the centralizer body.

  • The set screws can be integral with solid rigid centralizer body and then help save operation time and cost.

  • Different sizes are available



Specification

NO. Size (in) ID(mm) Height OD
(mm) (mm)
1 5-1/2”*7” 142-148 130 174
2 5-1/2”*8-1/2” 142-148 130 210
3 6”*8-1/2” 156-158 130 210
4 7”*8-1/2” 181-186 130 210
5 7”*9-5/8” 181-186 200 240
6 7-5/8”*9-5/8” 197-201 200 240
7 9-5/8”*12-1/4” 250-255 250 311
8 13-3/8”*17-1/2” 342-347 250 440


Well Cementing Solid Stemped Spiral Vane Centralizer High Anti-Impact 0
