Product Details:
Payment & Shipping Terms:
|
Application: | Insert Pump | Product Name: | The Plunger Of Pump |
---|---|---|---|
Warranty: | 12 Months | Color: | Required |
Material: | 1045 Steel | Power: | Machanical Energy |
High Light: | sand control screens,ball valve seat |

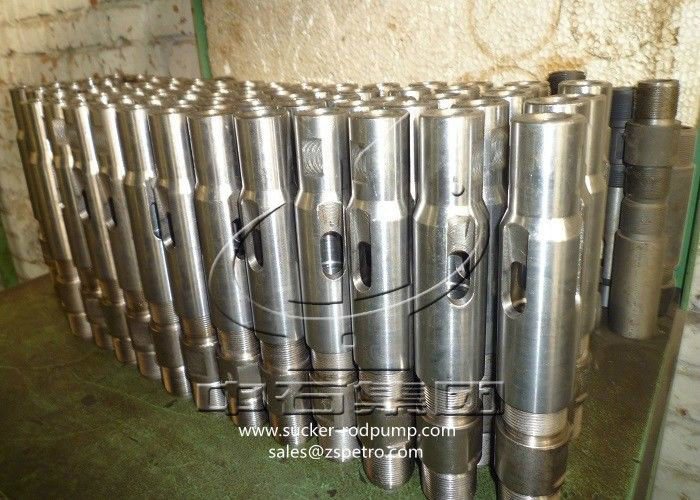

Steel Oilfield Pump Parts , Chrome Plated Technology Sucker Rod Pump Plunger
1. Description
Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Surface of the plunger is coated with nickel alloy and inside wall of the barrel is coated with hardness chrome. all the main parts of valve case, ball and seat are made of strong corrosion-resisting and excellent mechanical properties material.
2. Characteristics
1. API Spec. 11 AX
2. Chrome plated barrel
3. Nickle sprayed plunger
4. Material: 1045#steel
5. Technology: Chrome plated, spray metal coated
3. Technical Data
Mode | Technical parameter | ||||
Dia (mm) | Length(m) | Coating | Coating thickness(mm) | ||
Short plunger |
Ø27 |
0.9-1.2 |
spray welding |
chromeplate |
0.152-0.305 |
Ø31.75 | |||||
Ø38.10 | |||||
Ø44.45 | |||||
Ø50.80 | |||||
Ø57.15 | |||||
Ø63.50 | |||||
Ø69.85 | |||||
Ø95.25 | |||||
Long plunger |
Ø31.75 |
within-9.1m |
spray welding |
0.152-0.305 |
