Product Details:
Payment & Shipping Terms:
|
| Material: | Alloy Steel,J55 K55 N80 L80 P110 | Product Name: | API 5ct Casing And Tubing Pup Joint |
|---|---|---|---|
| Standard: | API, ISO,QHSE | Thread: | EUE , NUE |
| Thickness: | 2.87-30mm,4.24--20.62mm | Size: | 2-3/8-----3-1/2 |
| High Light: | pup joint casing,perforated pup joint |
||

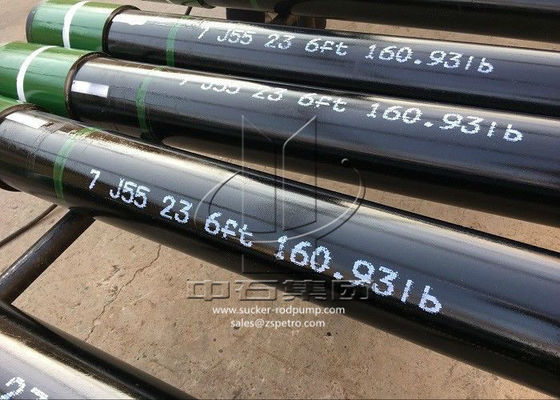

API 5CT Casing And Tubing 2 7 8 EUE Pup Joint For Oilfield Alloy Steel J55 K55 N80 L80 P110
Product Description:
Tubing pup joints are available upset with 8rd thread, color coded according to class and tensile strength, and manufactured according to API Spec 5CT.Also our group provide the oilfield products which include: subsurface sucker rod pump, pumping unit, cementing tools, wellhead (Christmas Tree),float shoe&collar,centralizer,sucker rod,pup joint,pony rod..etc
Features:
1. Grade:J55, K55, N80-1, N80-Q, L80, C90, P110
2. We also supply permium thread products by customer's request
3. Size: tubing coupling from 1.9" to 4-1/2",Casing coupling fro4-1/2"to 13-3/8"
4. Type: NU, EU(tubing coupling), STC,LC,BTC(casing coupling).
5. Surface treatment: Whole phosphating, or inside phosphating and outside coating
6. Packing: By carton, wooden case, wooden pallet, or by requirements of customers
7.Length: 2ft 4ft 6ft 8ft 10ft 12ft
8.Size: tubing:1.9"- 4 1/2" casing 4 1/2"-13 3/8"
9.Grade:P110 K55 J55 L80 N80
10.Packing: By carton,wooden case,wooden pallet,or by requirements of customers.
11.Thread:EU NU LTC BTC STC
Technical Parameter:
| Diameters: | 1.9" through 4.5" nominal O.D. |
| Weights: | Standard or Heavy Wall |
| Lengths: | 2, 3, 4, 6, 8, 10, 12 ft. Standard (Other lengths available upon request) |
| Grades: | J-55, N-80, N-80 Q & T, L-80, P-110 |
| Connections: | EUE, NUE, Buttress |
|
Size |
Type of Thread |
O.D*L (mm) |
Weight(kg) |
|---|---|---|---|
| 2-3/8" | NUE | 73.02*107.95 | 1.28 |
| 2-3/8" | EUE | 77.80*132.82 | 1.55 |
| 2-7/8" | NUE | 88.90*130.18 | 2.34 |
| 2-7/8" | EUE | 93.17*133.35 | 2.40 |
| 3-1/2" | NUE | 107.95*142.88 | 3.71 |
| 3-1/2" | EUE | 114.30*146.05 | 4.10 |
| 4" | NUE | 120.65*146.05 | 4.35 |
| 4" | EUE | 127.00*152.40 | 4.82 |
| 4-1/2" | NUE | 132.08*155.58 | 4.89 |
| 4-1/2" | EUE | 141.30*158.75 | 6.05 |
