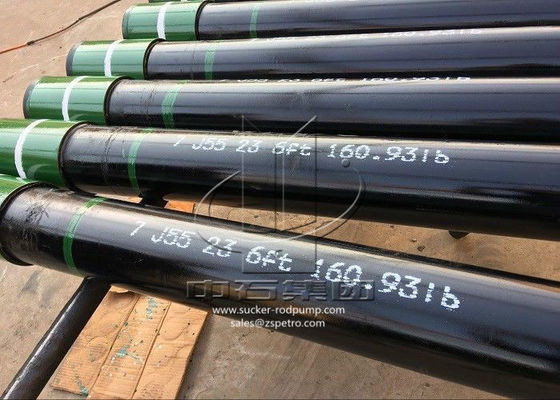

API 5CT Standard Pup Joint Casing With Seamless Nipple Alloy Steel Material

Product Details

Place of Origin: China

Brand Name: zhongshi

Certification: API 5CT ,ISO ,QHSE

Model Number: pup joint

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: exported packing

Delivery Time: 2 weeks

Payment Terms: T/T

Get Best Price
High Light:

pup joint casing

,

perforated pup joint

Name:
Casing And Tubing
Head Code:
Standard
Product Name:
API 5ct Casing And Tubing Pup Joint
Material:
Alloy Steel
Length:
API Standard,as Per Client's Request
Color:
Standard
Name:
Casing And Tubing
Head Code:
Standard
Product Name:
API 5ct Casing And Tubing Pup Joint
Material:
Alloy Steel
Length:
API Standard,as Per Client's Request
Color:
Standard
API 5CT Standard Pup Joint Casing With Seamless Nipple Alloy Steel Material

API 5CT Standard Pup Joint With Seamless Nipple And Pup Joint For Oilfield Services





Products Descriptions:



The pup joint is a pipe of non-standard length used to adjust the length of tubular strings to its exact requirement. There are 2 kinds of pup joints according to API 5CT standard: one is for casing pipe, the other is for tubing pipe. All the pup joints are made from new prime API raw materials and are identifiable throughout the manufacturing process via mill certifications and other trace-ability measures.

The cost of casing is a major part of the overall well cost, so selection of casing size, grade, connectors, and setting depth is a primary engineering and economic consideration. Shandong Wealth supply API 5CT standard casing pipe with assured quality and competitive price. Rely on good relationship with domestic big mills/factories. Your honored customers' need is our goal to work for with our best efforts!



Features:



1. Standard: API 5CT or customer specification

2. Grades: J-55, K55, N-80, L 80 & P-110

3. Sizes: 2-3/8’’- 4-1/2” EUE & NUE ( for tubing pipe) ; 4-1/2” to 20” LTC, STC, BTC etc ( for casing pipe)

4. Lengths: 2,3,4,6,8,10 12 ft (with other lengths available upon request)

5. Heat Treatment: Normalize or Quench & Temper

6. Identification: Steel stamped, paint stenciled & color coded

7. Testing: Electromagnetic, hydrostatic, dimensional, visual, magnetic particle, metallurgical & NDT

8. Threading: CNC with carbide tooling.



Technical Specifications:



Standard API 5CT
Grade Group.1 H40/PSL.1, J55/PSL.1, J55/PSL.2, J55/PSL.3, K55/PSL.1, K55/PSL.2, K55/PSL.3,
N80(1)/PSL.1, N80(1)/PSL.2, N80(Q)/PSL.1, N80(Q)/PSL.2, N80(Q)/PSL.3
Group.2

M65/PSL.1, M65/PSL.3, L80/PSL.2, L80(1)/PSL.1, L80(1)/PSL.3, L80(9Cr)/PSL.1, L80(13Cr)/PSL.1,

C90/PSL.1, C90/PSL.2, C90/PSL.3, T95/PSL.1, T95/PSL.2T95/PSL.3

Group.3 P110/PSL.1, P110/PSL.2, P110/PSL.3,
Group.4 Q125/PSL.1, Q125/PSL.2, Q125/PSL.3,
OD Tubing 1.66 inch to 4 1/2 inch or 42.16mm to 114.3mm
Casing 4 1/2 inch to 20 inch or 114.3mm to 508mm
Wall Thickness According to API 5CT Standard
Length Tubing R1 (6.10m to 7.32m), R2 (8.53m to 9.75m), R3 (11.58m to 12.80m)
Casing R1 (4.88m to 7.62m), R2 (7.62m to 10.36m), R3 (10.36m to 14.63m)
Type Seamless
End-Finish Tubing P, I, N, U
Casing P, S, B, L
