Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Type: |
Rotating Type |
Material: |
NBR |
Use: |
Well Drilling |
Feature: |
PDC Drillable |
Temperature: |
-30℃ To 150℃ |
Working Pressure: |
≥15MP |
Type: |
Rotating Type |
Material: |
NBR |
Use: |
Well Drilling |
Feature: |
PDC Drillable |
Temperature: |
-30℃ To 150℃ |
Working Pressure: |
≥15MP |

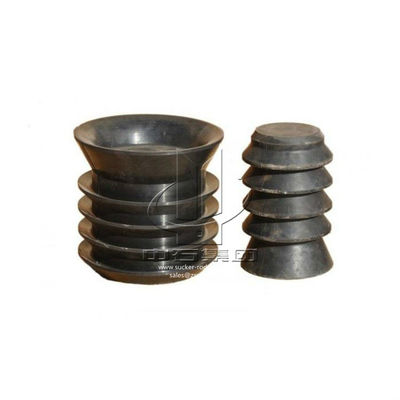

Oil Cementing Tool top and bottom Rotating cement plug
Cement plug is a rubber plug used to separated the cement slurry from other fluids, reducing contamination and maintaining predictable slurry performance.
These plugs are completely PDC drillable.
The top plug has a solid body that provides positive indication of contact with the landing collar and bottom plug through an increase in pump pressure.
Plug can be ordered for higher operating temperature and operation in either synthetic or mud fluids
| Casing | Casing Weight Range | Wiper Fin O.D | Working | Working | Burst | Hardness | ||
| Size(in) | mm | in | mm | in | Temperature | Pressure | Pressure | |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 | -30℃ to | ≥15MP | 1MP-2MP | 75-95 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 | 150℃ | |||
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 | ||||
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 | ||||
| 7 5/8" | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 | ||||
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 | ||||
| 13 3/8" | 71.43-107.15 | 48.00-72.00 | 333 | 13.11 | -30℃ to | ≥10MP | ||
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 | 150℃ | |||
