Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Shell For Float Shoe |
Processing: |
Forging |
Usage: |
Drilling Equipment |
Material: |
P-110, K55, J55, N80,L80 Or As Required |
Thread: |
STC/BTC/LTC Or As Required |
Reverse Pressure: |
35 Mpa |
Product: |
Shell For Float Shoe |
Processing: |
Forging |
Usage: |
Drilling Equipment |
Material: |
P-110, K55, J55, N80,L80 Or As Required |
Thread: |
STC/BTC/LTC Or As Required |
Reverse Pressure: |
35 Mpa |

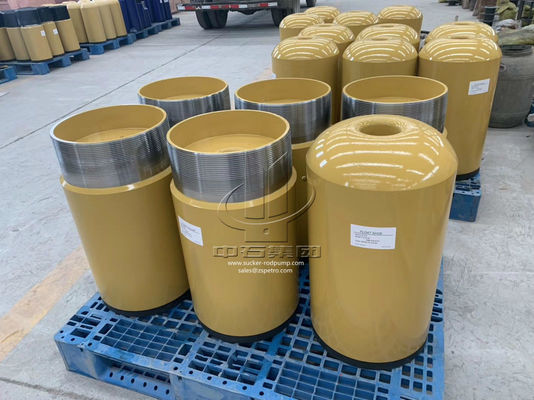

Cementing tools float shoe and float collar Non-rotating type
Description
Float shoe is attached on the casing bottom and provide buoyancy to the casing string while it’s lowered, reducing the load on the drilling rig. The round nose guides the casing away from ledges and obstructions in the well bores as the casing is lowered. A build-in check valve provides buoyancy to the casing string also prevents cement from re-entering the casing after it is displace.
| Specification(in) | O.D.(mm) | I.D. (mm) | Total length(mm) | Min.Dia. (mm) | Conn Type | Affordable strength of back-pressure(Mpa) | |
| Float Shoe | 5 | 140.3 | 110 | 495 | 50 | 5 BCSG | 35 |
| 5 1/2 | 153.67 | 122 | 514 | 55 | 5 1/2 BCSG | 35 | |
| 7 | 194.46 | 162.5 | 533 | 77 | 7 BCSG | 35 | |
| 9 5/8 | 269.88 | 225 | 550 | 77 | 9 5/8 BCSG | 35 | |
| 13 3/8 | 339.7 | 319 | 550 | 77 | 133/8 BCSG | 35 | |
| 20 | 534 | 475 | 652 | 77 | 20 BCSG | 35 | |
| Float Collar | 5 | 141.3 | 110 | 500 | 50 | 5 BCSG | 35 |
| 5 1/2 | 153.67 | 112 | 530 | 55 | 5 1/2BCSG | 35 | |
| 7 | 194.46 | 162.5 | 586 | 77 | 7 BCSG | 35 | |
| 9 5/8 | 270 | 225 | 720 | 77 | 9 5/8 BCSG | 35 | |
| 13 3/8 | 365 | 319 | 720 | 77 | 133/8 BCSG | 35 | |
| 20 | 533.4 | 475 | 720 | 77 | 20 BCSG | 35 | |
