Product Details:
Payment & Shipping Terms:
|
| Product Name: | Alloy Steel Sucker Rod,API Standard High Quality Oilfield Sucker Rod Wrenches For Sale | Grade: | D,KD,HY,K,HL |
|---|---|---|---|
| Package: | Bundle As Per API 11B Standard | Size: | 5/8"-1-1/8" |
| Standard: | API 11B | Advantage: | High Performance |
| Usage: | Oil Extraction | Brand Name: | Zhong Shi |
| High Light: | bottom hole pump,oil sucker rod |
||
API 11B Standard Sucker Rod Oil Drilling Equipment And Sucker Rod Accessories
Products Description:
A string or solid or hollow tubular that is moved by a pump jack at the surface to operate a rod pump at the bottom of the well.
The sucker rod is a special sucker rod designed for oil extraction of high pour point, high viscosity and high wax content. It is combined with threaded joints, sealing and rod body. The rod body is made of seamless steel tube and the threaded joint is connected with the rod body through friction welding and heat treatment. The pin thread is formed by roller.The sucker rod has hollow sucker rod and hollow polished sucker rod, hollow pony rod types.
Features:
1. Sucker rod structure can be injected with hot oil, vapor. It can also be used for running heating cable.
2. The threaded joint is designed with bearing surface to make the joint more reliable.
3. High rigidity to bear large torque.
4. Connection type: coupling connection and direct connection.

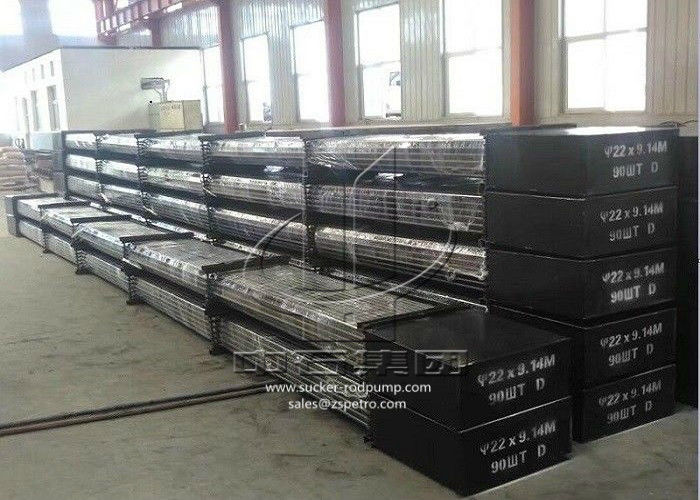

5. Metal pallet package for saving space and convenient to transport.
6. There are plastic caps to protect thread of sucker rod.
Grade Detail:
1. Grade D sucker rod: Made of quality heat treated steel alloy, with high tensile and yield strength; suitable for non-corroding or mildly corroding environment.
2. Grade C sucker rod: Moderate strength, not susceptible to sulfide stress cracking, suitable in sour medium.
3.. Grade HL and HY sucker rod: High strength; structure and size matching with grade D sucker rod; withstanding 966-1, 136 MPa (140, 000-164, 720 psi); suitable for deep and large displacement wells
Specification Of Sucker Rod and Pony Rod:
| Item | Rod body | Nominal thread | O.D. Joint | Wrench size | Length | |||
| Diameter | Thickness | Length | Thickness | Rod | Pony Rod | |||
| ZS32 | 32mm | 5.5mm | 1-7/16" | 50mm | 35mm | 46mm | 7.5m - 9m | 0.6m, 1m - 3.5m |
| ZS34 | 34mm | 5.0mm, 5.5mm | 1-9/16" | 50mm | 35mm | 46mm | 7.5m - 9m | 0.6m, 1m - 3.5m |
| ZS36 | 36mm | 5.0mm, 5.5mm, 6.0mm | 1-9/16" | 50mm | 35mm | 46mm | 7.5m - 9m | 0.6m, 1m - 3.5m |
| ZS38 | 38mm | 6.0mm | 1-3/4" | 56mm | 41mm | 49mm | 7.5m - 9m | 0.6m, 1m - 3.5m |
| ZS42 | 42mm | 6.0mm | 1-7/8" | 60mm | 41mm | 54mm | 7.5m - 9m | 0.6m, 1m - 3.5m |
| ZS48 | 48mm | 5.5mm | 2" | 62mm | 41mm | 58mm | 7.5m - 9m | 0.6m, 1m - 3.5m |
Specification of Polished Rod:
| Item | Rod body | Nominal thread | O.D. Joint | Wrench size | Length | ||
| Diameter | Thickness | Length | Thickness | ||||
| ZS36 | 36mm | 6.0mm, 6.5mm | 1-9/16" | 50mm | 35mm | 46mm | 7.5m - 9m |
| ZS38 | 38mm | 6.0mm | 1-3/4" | 56mm | 41mm | 49mm | 7.5m - 9m |
| ZS42 | 42mm | 6.0mm | 1-7/8" | 60mm | 41mm | 54mm | 7.5m - 9m |
