High Performance RHBM Rod, Heavy Wall Barrel, Mechanical Bottom Anchor Pump

Name: High Performance RHBM Rod, Heavy Wall Barrel, Mechanical Bottom Anchor Pump
Brand: zhongshi
SKU: RHBM
Price: 1.00 USD
Availability: InStock
Rating: 5 (184 reviews)

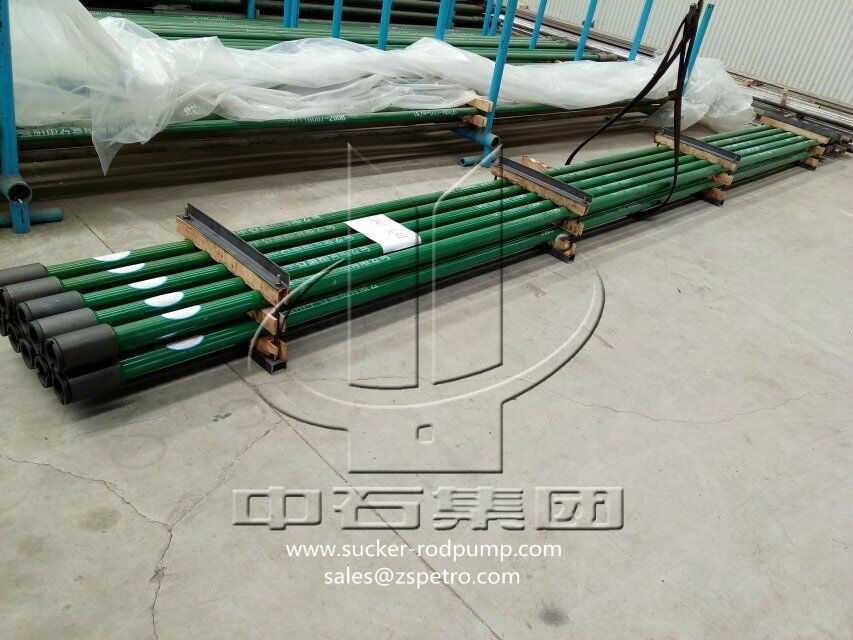

Large Image : High Performance RHBM Rod, Heavy Wall Barrel, Mechanical Bottom Anchor Pump

Product Details:

Place of Origin:	China
Brand Name:	zhongshi
Certification:	API, ISO, QHSE
Model Number:	RHBM

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard exported packing
Delivery Time:	10~15 workdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 SETS/MONTH

Contact Now

Detailed Product Description

Name:	Sucker Rod Pump	Type:	RHBM
Mechanical Type:	Mechanical Bottom Anchor Pump	Supplier:	Puyang Zhongshi Group
Production Place:	China
High Light:	Mechanical Bottom Anchor Pump , RHBM Oilfield Sucker Rods

High Performance RHBM Rod, Heavy Wall Barrel, Mechanical Bottom Anchor Pump

Product description

The biggest difference between the rod pump and the tube pump is that the tube pump body is directly connected to the tubing string, while the rod pump is connected to the tubing string through a support joint, and the rod pump body is placed inside the tubing.

When inspection and maintenance pump,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple.

Rod pump is equipped with a support joint, support joint connected on the tubing string, and it is together with the tubing string down to the bottom. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint by external force, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work.
When inspection and maintenance pump,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple.

Technical parameter list

Specification	Pump diameter (in)	Barrel length (ft)	Plunger length (ft)	Stroke length (ft)	Extension length (ft)	Tubing size EUE(in)	Sucker rod size
15-106RHBC	Ø26.99	2.1-10.4	0.3-8.0	1.2-9.0	0.3-0.9	1.9”	CYJ16 CYJ19
20-125RHBC	Ø31.75					2-3/8”
25-150RHBC	Ø38.10					2-7/8”
25-175RHBC	Ø44.45					2-7/8”
30-225RHBC	Ø57.15					3-1/2”
