Deep Well C3 API 11Ax 175 RWBM Oilfield Sucker Rods

Deep Well C3 API 11Ax 175 RWBM Oilfield Sucker Rods
Deep Well C3 API 11Ax 175 RWBM Oilfield Sucker Rods Deep Well C3 API 11Ax 175 RWBM Oilfield Sucker Rods

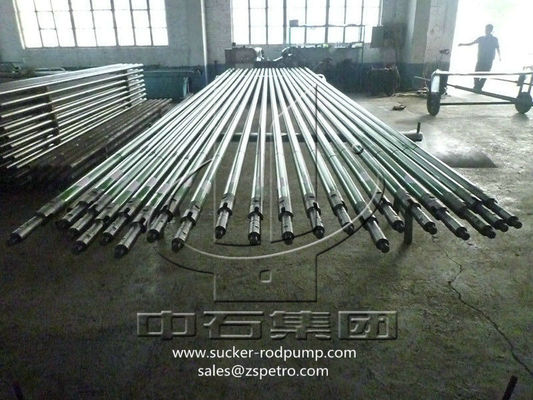

Large Image :  Deep Well C3 API 11Ax 175 RWBM Oilfield Sucker Rods

Product Details:

Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Detailed Product Description
Standard: API 11Ax Type: Rod Pump,RHBM-ARWAC
Processing Type: B1~B6,A1~A6,C3 Product Name: Sucker Rod Pump,Tubing Pumps
Machine Type: Pump,Pumping Unit Use: Oil Field,oil Production
High Light:

175 RWBM Oilfield Sucker Rods


API 11Ax Oilfield Sucker Rods


C3 Sucker Rod Pump

Puyang Zhongshi Group Manufactured Safe Operation Deep Well 25 - 175 RWBM For Oil Production Oil Sucker Pump


Product Description


Rod pump is equipped with a support joint, support joint connected on the tubing string, and it is together with the tubing string down to the bottom. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint by external force, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work.When inspection and maintenance pump,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple.


Technical parameter list:


Specification Pump diameter (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in) Sucker rod size
20-125RHAC Ø31.75 2.1-10.4 0.3-8.0 1.2-9.0 0.3-0.9 2-3/8”



25-150RHAC Ø38.10 2-7/8”
25-175RHAC Ø44.45 2-7/8”
30-225RHAC Ø57.15 3-1/2”



1. Rod pump can be pulled out from the well directly.

2. Well inspection and work over is convenient.

3. Reduce the cost of pumping test.

4. Suitable for deeper well.


Operating principle of tubing pumps:

The pump barrel assembly directly fixed on a tubing string. the plunger assembly connected on the sucker rod string ,and with the up and down reciprocating motion, so as to realize the production process. Its advantage lies in: in the process of oil production, when the traveling valve and fixed valve side problem,valve side can be proposed by the sucker rod, piston and extractor , don’t put the whole pump and tubing string out of the well, reduce the work intensity and the operation cost

Deep Well C3 API 11Ax 175 RWBM Oilfield Sucker Rods 0

Deep Well C3 API 11Ax 175 RWBM Oilfield Sucker Rods 1
