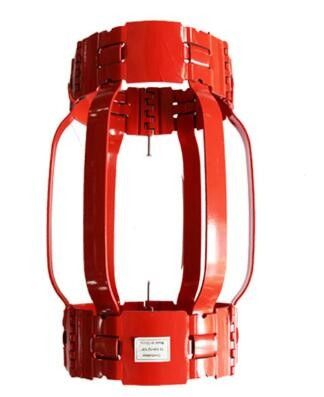

Hinged Non Weld API10D 20"X26" Bow Spring Centralizer

Product Details

Place of Origin: China

Brand Name: Puyang Zhongshi Group

Certification: API,ISO,QHSE

Model Number: 4 1/2"~20"

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: depends on quantity

Payment Terms: T/T, MoneyGram

Get Best Price
High Light:

20"X26" Bow Spring Centralizer

,

API10D Bow Spring Centralizer

,

20"X26" sucker rod centralizer

Type:
Hinged Non-welded
Standard:
API10D
Installation:
Hinged/Latch-on
Crest:
Single Crest
Bow:
4-8
Application:
Oilfield Cementing Equipment
Type:
Hinged Non-welded
Standard:
API10D
Installation:
Hinged/Latch-on
Crest:
Single Crest
Bow:
4-8
Application:
Oilfield Cementing Equipment
Hinged Non Weld API10D 20"X26" Bow Spring Centralizer

Hinged Non-Weld Bow Spring Centralizer



Non-welded bow-spring centralizers centralize casing or tubing in the wellbore during running and cementing operations.

The elasticity of the centralizer gives it a capability to be run through tight spots. Non-welded bow spring centralizers are

available in several bow heights and sizes to ensure optimum restoring force and provide in a variety of bow configurations

for special applications.


Hinged Non-Weld Bow Spring Centralizer Features



  • Tubing or casing applications
  • Vertical and deviated wells
  • Wells where rotation capabilities are not required
  • Cased and open holes





Hinged Non-Weld Bow Spring Centralizer Specification

Model Max.Out-Dia Hooping In-Dia. Total length Amount of spring
(in) (mm) (mm) (mm) (mm)
5-1/2" x 8-1/2" 225±5 142-148 650±50 5
7" x 9-5/8" 255±5 181-186 650±50 6
7" x 8-1/2" 235±5 181-186 650±50 6
8-5/8 x 12-1/4" 330±5 223-228 650±50 8
9-5/8 x 12-1/4" 330±5 250-255 650±50 8
10-3/4 x 12-1/4" 330±5 274-276 650±50 9
13-3/8"x17-1/2" 450±5 342-347 650±50 11
18-5/8"x24" 610±5 475-477 600±50 12
20"x26" 660±5 509-511 600±50 12
