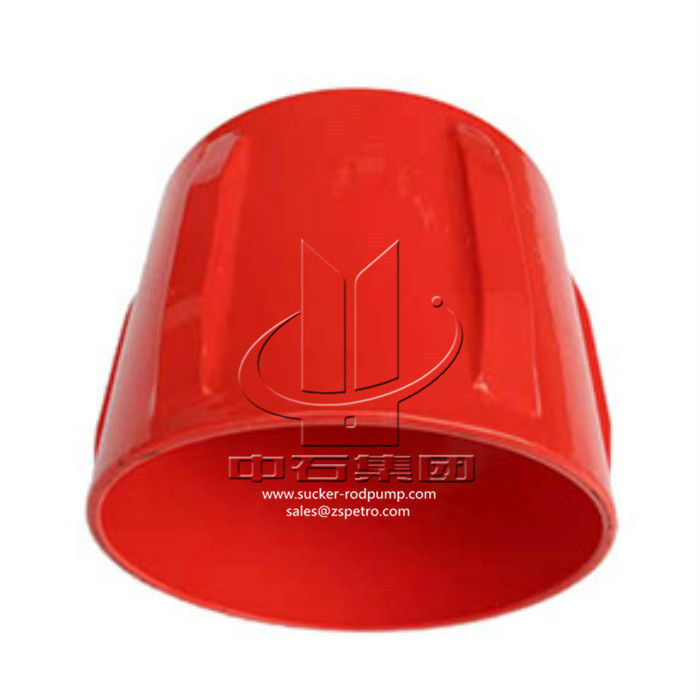

Solid Rigid Spiral Vane 4-1/2"×6" Bow Spring Centralizer

Name: Solid Rigid Spiral Vane 4-1/2"×6" Bow Spring Centralizer
Brand: Puyang Zhongshi Group Co., Ltd.
SKU: 4 1/2"~36"
Price: 105.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Puyang Zhongshi Group

Certification: API,ISO,QHSE

Model Number: 4 1/2"~36"

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: depends on quantity

Payment Terms: T/T, MoneyGram

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                4-1/2"×6" Bow Spring Centralizer, Vane Bow Spring Centralizer, 4-1/2"×6" rigid centralizer


Type:	Solid Rigid Type	Installation:	Slip-on Type
Process:	Casting	Vane Type:	Spiral
Color:	Red Color	Application:	Well Cementing

Type:	Solid Rigid Type
Installation:	Slip-on Type
Process:	Casting
Vane Type:	Spiral
Color:	Red Color
Application:	Well Cementing

Solid Rigid Spiral Vane 4-1/2"×6" Bow Spring Centralizer

Solid Rigid Spiral Vane Casing Centralizer

Solid Rigid Spiral Vane Casing Centralizer provide a wide range of options for casing centralization, from standard vertical well configurations to highly deviated and horizontal wells. Their high-quality construction provides great strength and downhole integrity.

Solid Rigid Spiral Vane Casing Centralizer Features

The solid rigid centralizer with high tensile and yield strengths is used in deviated or horizontal wells.
The solid rigid centralizers are available, straight or spiral blade both available, straight blade for low density fluid,spiral blade for high density fluid.
Right hand or left hand is available.
Available to different sizes.

Solid Rigid Spiral Vane Casing Centralizer Specification

Specification	casing size (mm)	Outer Diameter (mm)	Hole Size (mm)	Inner Diameter (mm)
4-1/2"×6"	114	146	152	118
5"×6 5/8"	127	162	168	131
5-1/2″×8-1/2″	140	210	216	142
6-5/8″×8-1/2″	168	210	216	172
7″×8-1/2″	178	210	216	182
7"× 9-1/2"	178	235	241	182
9-5/8″×12-1/4″	244	305	311	249
13-3/8″×17-1/2"	340	439	445	344

Solid Rigid Spiral Vane 4-1/2"×6" Bow Spring Centralizer 0
