API 11 AX Sucker Rod Pump Parts Barrel Plunger

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API,ISO,QHSE

Model Number: Sucker rod pump

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: T/T, D/P, D/A, L/C, Western Union

Supply Ability: 1000 Sets per Month

Get Best Price
High Light:

API 11 AX Sucker Rod Pump Parts

,

Plunger Sucker Rod Pump Parts

,

API 11 AX Barrel Plunger

Product Name:
Scuekr Rod Pump Parts
Standard:
API 11 AX
Usage:
Oil Production
Plunger:
Spray Metal
Barrel:
Chorm Plate
Warranty:
1 Year
Product Name:
Scuekr Rod Pump Parts
Standard:
API 11 AX
Usage:
Oil Production
Plunger:
Spray Metal
Barrel:
Chorm Plate
Warranty:
1 Year
API 11 AX Sucker Rod Pump Parts Barrel Plunger

API 11 AX Sucker Rod Pump Parts / Barrel Plunger



Products Characters:


Sucker rod pump is equipped with a seating nipple(there are two seating nipples in API-RHBM-AC) , seating nipple connection on the tubing string, down to the bottom of the well with the tubing string. Plunger assembly connection on the sucker rod string and with the pump overall down to seating nipple position together , pump with fixed inside the seating nipple , Plunger assembly with the sucker rod string up and down reciprocating movement to achieve pumping work.



Main Specification and Parameters of API Standard Rod Pump:



Specification Nominal Diameter (mm) Plunger Length (m) Stroke (m) Pump Constant (m3/d) Thread of Connecting Tubing Thread of Sucker Rod Max.Pump OD.(mm)
RHA 20-106RHAC/M 28

0.6

0.9

1.2

1.5

0.6-8.0 0.886 2 3/8 3/4 45.72/47.63
20-125RHAC/M 32 1.140 2 3/8 3/4 45.72/47.63
25-150RHAC/M 38 1.642 2 7/8 3/4 58.67/59.54
25-175RHAC/M 44 2.235 2 7/8 3/4 58.67/59.54
30-225RHAC/M 57 3.694 3 1/2 3/4 71.37/72.24
RHB 20-106RHBC/M 28 0.886 2 3/8 3/4 45.72/47.63
20-125RHBC/M 32 1.140 2 3/8 3/4 45.72/47.63
25-150RHBC/M 38 1.642 2 7/8 3/4 58.67/59.54
25-175RHBC/M 44 2.235 2 7/8 3/4 58.67/59.54
30-225RHBC/M 57 3.694 3 1/2 3/4 71.37/72.24
RWA 20-125RWAC/M 32 1.140 2 3/8 3/4 45.72/47.63
20-150RWAC/M 38 1.642 2 3/8 3/4 45.72/47.63
25-200RWAC/M 50.8 2.920 2 7/8 3/4 58.67/59.54
30-250RWAC/M 63.5 4.560 3 1/2 3/4 71.37/72.24
RWB 20-125RWBC/M 32 1.140 2 3/8 3/4 58.67/59.54
20-150RWBC/M 38 1.642 2 3/8 3/4 45.72/47.63
25-200RWBC/M 50.8 2.920 2 7/8 3/4 58.67/59.54
30-250RWBC/M 63.5 4.560 3 1/2 3/4 71.37/72.24

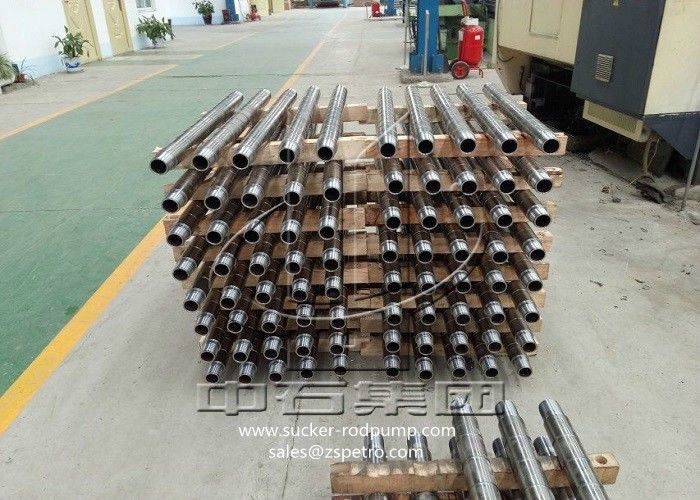

API 11 AX Sucker Rod Pump Parts Barrel Plunger 0

API 11 AX Sucker Rod Pump Parts Barrel Plunger 1



Features:



1. Type of barrel: chrome plated or carbonitrided surface

2. Type of plunger: metal spray or chrome plated surface

3. Valve ball and seat materials: stainless steel and tungsten carbide
