Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: RHBM/AC
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Product Name: |
Sucker Rod Pump |
Color: |
Required |
Type: |
Sucker Rod,Rod Pump |
Material: |
Carbon Steel,Stainless Steel |
Machine Type: |
Petroleum Machinery |
Standard: |
API |
Application: |
Petroleum Production |
Product Name: |
Sucker Rod Pump |
Color: |
Required |
Type: |
Sucker Rod,Rod Pump |
Material: |
Carbon Steel,Stainless Steel |
Machine Type: |
Petroleum Machinery |
Standard: |
API |
Application: |
Petroleum Production |

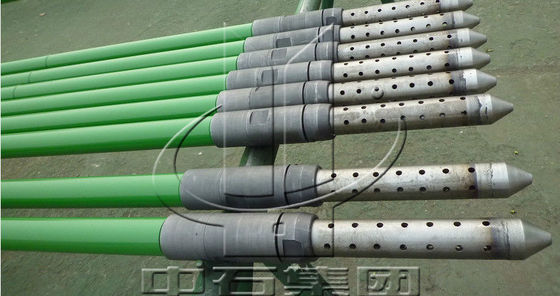

Puyang Zhongshi Produced Petroleum Machinery Oil Sucker Rod Pump
Product description
After being assemblied on the surface, the Sucker rod pump is run into the well and seated inside the seating nipple. There is no need to lift the tubing, which reduces operation time and cost, frequency of turning on and off tubing threads, and prolongs run life of the tubings.
The rod pump can be classified into mechanical type(M) and cup type(C) according to the tupe of seating assembly. Also it is divided into three types as RHA(stationary heavy well barrel top anchor rod pump), RHB(stationary heavy well barrel bottom anchor rod pump) and RHT(travelling heavy well barrel bottom anchor rod pump), depending where the seating assembly is positioned.
Technical parameter list
| Specification | Pump diameter (in) | Barrel length (ft) | Stroke length (ft) | Extension length (ft) |
| 20-125RHBM/AC | Ø31.75 | 2.1-10.4 | 1.2-9.0 | 0.3-0.9 |
| 25-150RHBM/AC | Ø38.10 | |||
| 25-175RHBM/AC | Ø44.45 | |||
| 30-225RHBM/AC | Ø57.15 |
