Coalbed Gas API Standard Plunger 8ft Srp Pump

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: Sucker rod pump

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price
High Light:

Plunger 8ft Srp Pump

,

Coalbed Srp Pump

,

Coalbed sinker bar rod pump

Standard:
API 11AX
Application:
Oil Production; Coalbed Gas
Type:
30-250 RWBM Series
Pump ID:
63.5mm
Warranty:
12 Months
Plunger Length:
0.3-8ft
Standard:
API 11AX
Application:
Oil Production; Coalbed Gas
Type:
30-250 RWBM Series
Pump ID:
63.5mm
Warranty:
12 Months
Plunger Length:
0.3-8ft
Coalbed Gas API Standard Plunger 8ft Srp Pump

Coalbed Gas And Oil Production Use 30-250 RWBM Series Sucker Rod Pump



Product Description



Rod pump is equipped with a support joint, support joint connected on the tubing string, and it is together with the tubing string down to the bottom. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint by external force, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work.When inspection and maintenance pump,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple.



Technical parameter list:



Specification Pump diameter (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
20-125RWBM Ø31.75 2.1-10.4 0.3-8.0 1.2-9.0 0.3-0.9 2-3/8”
25-150RWBM Ø38.10 2-7/8”
25-175RWBM Ø44.45 2-7/8”
30-225RWBM Ø57.15 3-1/2”



Features


1. It is suitable for corrosion and small amount of sand and gas, deep Wells, such as complex well conditions, the use of safe, stable performance and wide application.
2. Under operation easy to operate, economical and practical, it can reduce oil field operation cost by more than 30%.
3. It can be designed according to the customer’s well.

Mechanical Propertie

1. Rod pump are suspended inside the tubing with the support joint ,it is suitable for low temperature of deep well and deviated well drilling, good corrosion resistant effect. easy to operate, economical and practical, it can reduce oil field operation cost by more than 50%.



2. It can be designed according to the customer’s well.

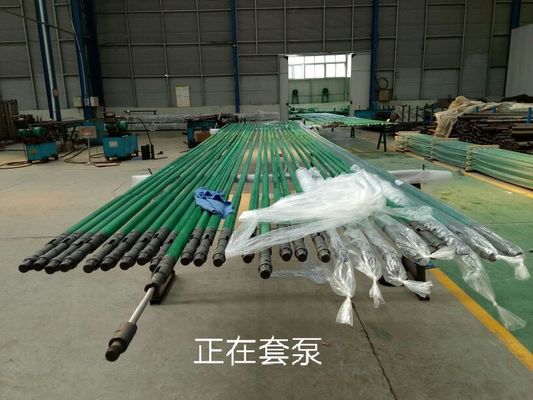

Coalbed Gas API Standard Plunger 8ft Srp Pump 0
