Name: | Sucker Rod Pump | Standard: | API Certified |
---|---|---|---|
Application: | Oil Production; Coalbed Gas | Type: | 20-150 RWBM Series |
Pump Diameter: | 38.1mm | Plunger Length: | 0.3-8ft |
High Light: | 150 RWBM Sucker Rod Pump,Oilfield Sucker Rod Pump,150 RWBM sucker rod pumping |

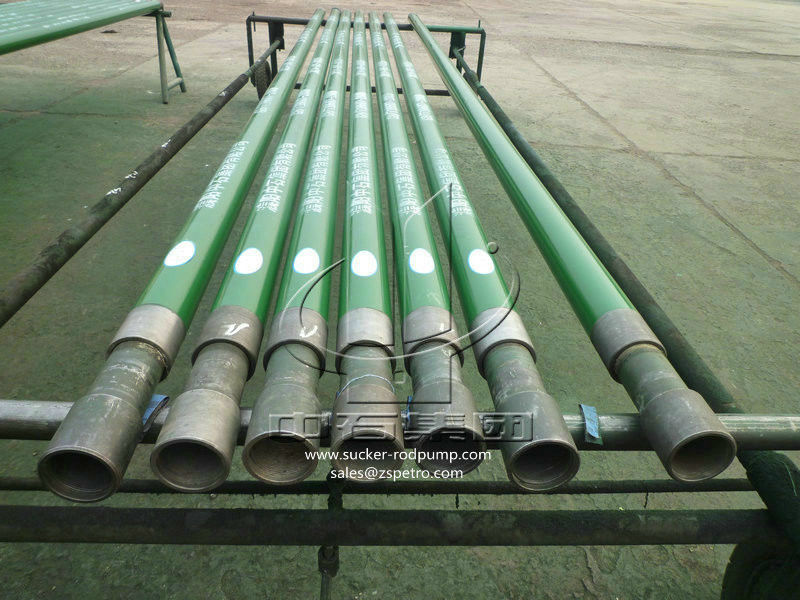

API Certified Chrome Plated Barrel 150 RWBM Sucker Rod Pump
Chrome PlatedSucker Rod Pump Description
The Sucker Rod Pump with chrome plating barrel is fixed and sealed with the sucker rod into the predetermined position in the tubing, so it is also called "insertion pump". It does not need to lift the tubing when checking the pump. Sucker Rod Pump is convenient for operation and suitable for use in deep wells. ; Reduce the operation of the upper shackle of the oil pipe and extend the service life of the oil pipe; the pump body of the rod-type oil pump can swing around the fixing device, which is suitable for inclined wells.
Sucker Rod Pump Technical parameter list:
Specification | Pump diameter (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) |
20-125RWBM | Ø31.75 | 2.1-10.4 | 0.3-8.0 | 1.2-9.0 | 0.3-0.9 | 2-3/8” |
25-150RWBM | Ø38.10 | 2-7/8” | ||||
25-175RWBM | Ø44.45 | 2-7/8” | ||||
30-225RWBM | Ø57.15 | 3-1/2” |
Features of Sucker Rod Pump
1. Sucker Rod Pump with chrome plated barrel is suitable for corrosion and small amount of sand and gas, deep Wells, such as complex well conditions, the use of safe, stable performance and wide application.
2. Easy to operate, economical and practical, it can reduce oil field operation cost by more than 30%.
Mechanical Propertie of Sucker Rod Pump
1. Sucker Rod Pump are suspended inside the tubing with the support joint ,it is suitable for low temperature of deep well and deviated well drilling, good corrosion resistant effect. easy to operate, economical and practical, it can reduce oil field operation cost by more than 50%.
2. Sucker Rod Pump can be designed according to the customer’s well.
