Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
API Oilfield Stab-in Float Shoe With Cement |
Type: |
Stab-in |
Fill-in: |
Cement |
Material: |
P-110, K55, J55, N80,L80 Or As Required |
Thread: |
STC/BTC/LTC Or As Required |
Reverse Pressure: |
35 Mpa |
Product: |
API Oilfield Stab-in Float Shoe With Cement |
Type: |
Stab-in |
Fill-in: |
Cement |
Material: |
P-110, K55, J55, N80,L80 Or As Required |
Thread: |
STC/BTC/LTC Or As Required |
Reverse Pressure: |
35 Mpa |

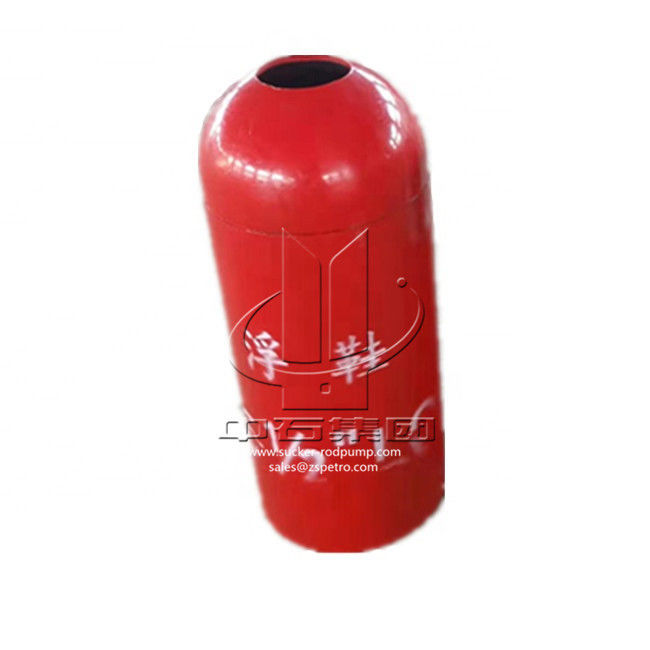

API oilfield Stab-in Float Shoe with Cement
Float shoe is attached on the casing bottom and provide buoyancy to the casing string while it’s lowered, reducing the load on the drilling rig. The round nose guides the casing away from ledges and obstructions in the well bores as the casing is lowered. A build-in check valve provides buoyancy to the casing string also prevents cement from re-entering the casing after it is displaced
| Specification(in) | O.D.(mm) | I.D. (mm) | Total length(mm) | Min.Dia. (mm) | Conn Type | Affordable strength of back-pressure(Mpa) | |
| Float Shoe | 5 | 140.3 | 110 | 495 | 50 | 5 BCSG | 35 |
| 5 1/2 | 153.67 | 122 | 514 | 55 | 5 1/2 BCSG | 35 | |
| 7 | 194.46 | 162.5 | 533 | 77 | 7 BCSG | 35 | |
| 9 5/8 | 269.88 | 225 | 550 | 77 | 9 5/8 BCSG | 35 | |
| 13 3/8 | 339.7 | 319 | 550 | 77 | 133/8 BCSG | 35 | |
| 20 | 534 | 475 | 652 | 77 | 20 BCSG | 35 | |
