Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
API Oilfield Stab-in Float Collar With Cement |
Type: |
Stab-in |
Material: |
P-110, K55, J55, N80,L80 Or As Required |
Fill-in: |
Cement |
Thread: |
API Thread Or As Required |
Reverse Pressure: |
35 Mpa |
Product: |
API Oilfield Stab-in Float Collar With Cement |
Type: |
Stab-in |
Material: |
P-110, K55, J55, N80,L80 Or As Required |
Fill-in: |
Cement |
Thread: |
API Thread Or As Required |
Reverse Pressure: |
35 Mpa |

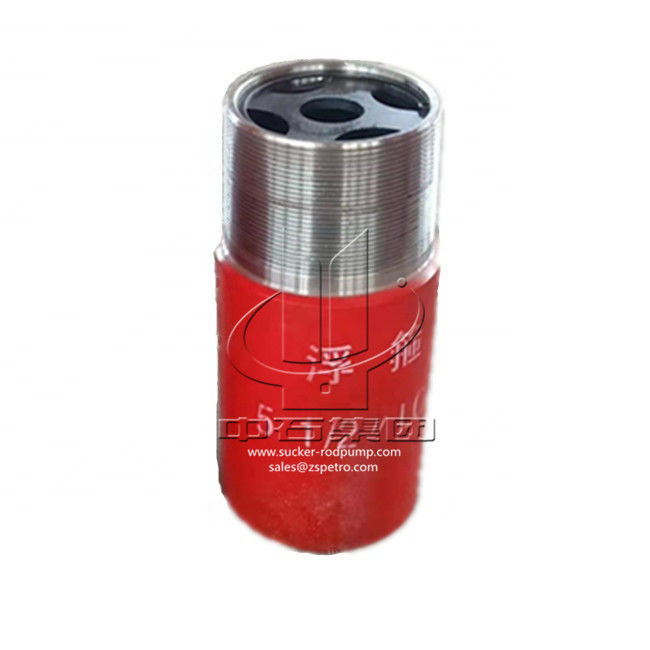

API oilfield Stab-in Float Collar with Cement
Float collar is installed on the casing and up the float shoe. Like float shoe, it also provide buoyancy to the casing string when it’s lowered, reducing the load on the drilling rig. A build-in check valve provides buoyancy to the casing string also prevents cement from re-entering the casing after it’s displaced. It’s a receptacle to cement plug
| Size (in) | Bore O.D (in) | Bore I.D (in) | Min.Bore Parameter (in) | Thread Type | Ib (in 2) |
| 5 1/ 2” | 6” | 4 3/ 4” | 2” | 5 1/ 2” LCSG | 4351 |
| 7” | 7 5/ 8” | 6 1/ 4” | 2 3/ 8” | 7” LCSG | 3626 |
| 9 5/ 8” | 10 5/ 8” | 8 5/ 8” | 2 3/ 8” | 9 5/ 8” LCSG | 3626 |
| 13 3/ 8” | 14 3/ 8” | 12 3/ 8” | 2 3/ 8” | 13 3/ 8” LCSG | 3626 |
