Product Details:
Payment & Shipping Terms:
|
Product: | API Cement Fill Float Collar And Float Shoe | Type: | Cement Fill |
---|---|---|---|
Size: | 4-1/2 ~ 20 In | Material: | P-110, K55, J55, N80,L80 |
Thread: | API Thread Or As Required | Service: | OEM Service |
High Light: | 4 1/2" Float Collar And Float Shoe,API Float Collar And Float Shoe,4 1/2" casing float shoe |

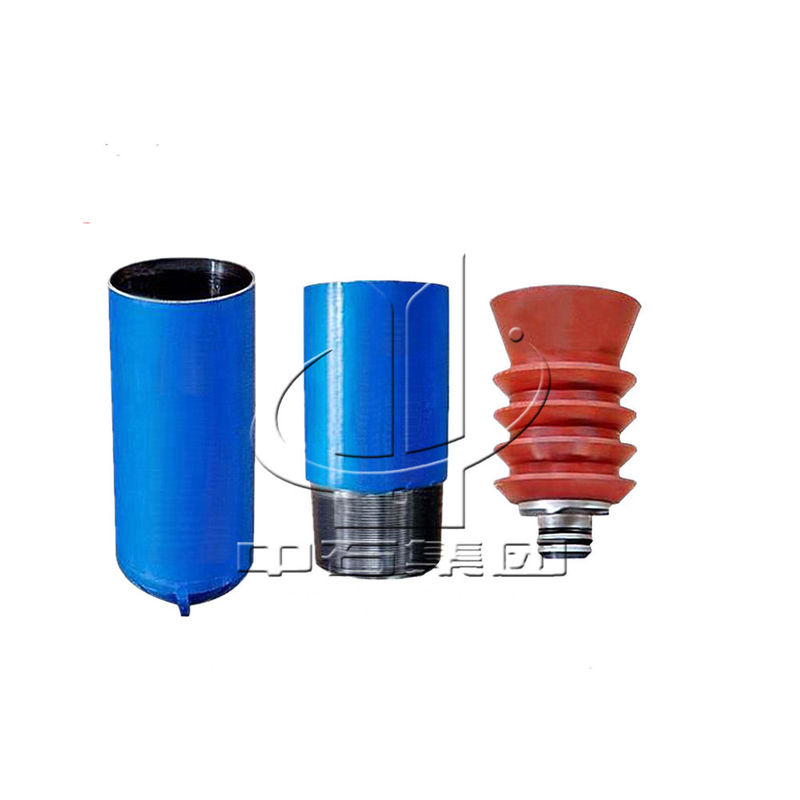

API Cement Fill Float Collar and Float Shoe
The Float Collar and Float Shoe is used to guide the casing to be put into the hole. It can adjust the floating power of the casing when the casing been laid in. That can certify the qualification of the cementing. The Float Collars and Float Shoe manufactured by our company use the Spring Driving back-pressure valve type. It has a high reliabilit
Specification(in) | O.D.(mm) | Total length(mm) | I.D. (mm) | Min.Dia. (mm) | Conn Type | Affordable strength of back-pressure(Mpa) | |
Float Collar | 5 | 141.3 | 500 | 110 | 50 | 5 BCSG | 35 |
5 1/2 | 153.67 | 530 | 112 | 55 | 5 1/2BCSG | 35 | |
7 | 194.46 | 586 | 162.5 | 77 | 7 BCSG | 35 | |
9 5/8 | 270 | 720 | 225 | 77 | 9 5/8 BCSG | 35 | |
13 3/8 | 365 | 720 | 319 | 77 | 133/8 BCSG | 35 | |
20 | 533.4 | 720 | 475 | 77 | 20 BCSG | 35 | |
Float Shoe | 5 | 140.3 | 495 | 110 | 50 | 5 BCSG | 35 |
5 1/2 | 153.67 | 514 | 122 | 55 | 5 1/2 BCSG | 35 | |
7 | 194.46 | 533 | 162.5 | 77 | 7 BCSG | 35 | |
9 5/8 | 269.88 | 550 | 225 | 77 | 9 5/8 BCSG | 35 | |
13 3/8 | 339.7 | 550 | 319 | 77 | 133/8 BCSG | 35 | |
20 | 534 | 652 | 475 | 77 | 20 BCSG | 35 |
