Product Details:
Payment & Shipping Terms:
|
Parts Name: | Seating Nipple | Material: | Low Alloy Steel |
---|---|---|---|
Length: | <= 6m | Warranty: | 12 Months |
Coating: | Spray Metal | Application: | Pump Parts |
High Light: | N11-20 Seating Nipple Oilfield,28MM Seating Nipple Oilfield,N11-20 seat nipple oil and gas |
Low Alloy Steel N11-20 Seating Nipple Oilfield Pump Parts
Seating nipple description
Seating nipple is a kind of pump parts for sucker rod pumps and tubing pumps.
Material of seating nipple: carbon steel, low alloy steel
Features
1.Mechanical properties, surface finish and dimensional accuracy is higher than the standard requirements.
2.API standard or customized
3.Long service life
Technical parameters
size(mm) | OD mm (-0.013-0mm) | Length m (+/-6.35mm) | Note |
Ø28 | Ø26.99 | <=6.6m | PL<2.1,Straightness measurement value is less than0.03mm/ft;PL≥2.1m,Straightness measurement value is less than0.18mm/ft |
Ø32 | Ø31.75 | ||
Ø38 | Ø38.10 | ||
Ø44 | Ø44.45 | ||
Ø50 | Ø50.80 | ||
Ø57 | Ø57.15 | ||
Ø63 | Ø63.50 | ||
Ø70 | Ø69.85 | ||
Ø95 | Ø95.25 |

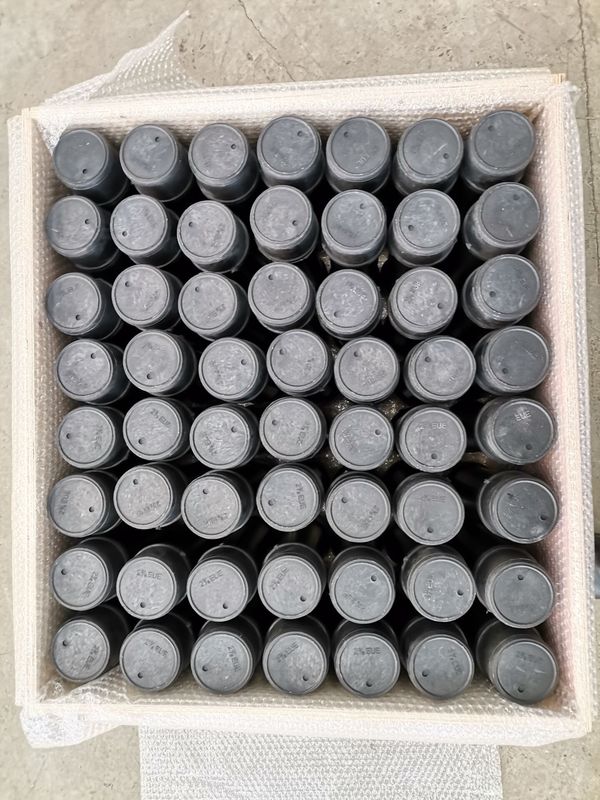

Seating nipple packing photo
