Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: RHAC
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Product Name: |
Sucker Rod Pump |
Machine Type: |
Petroleum Machinery |
Application: |
Petroleum Production |
Color: |
Required |
Usage: |
Oil Field |
Size: |
3/4",1 1/8",1",5/8,25-225 |
Material: |
Carbon Steel |
Manufacturer: |
Puyang Zhongshi Group |
Product Name: |
Sucker Rod Pump |
Machine Type: |
Petroleum Machinery |
Application: |
Petroleum Production |
Color: |
Required |
Usage: |
Oil Field |
Size: |
3/4",1 1/8",1",5/8,25-225 |
Material: |
Carbon Steel |
Manufacturer: |
Puyang Zhongshi Group |
API ISO QHSE Certification Approved OEM Sucker Rod Pump
Sucker Rod Pump Product description
Rod pump is equipped with a support joint, support joint connected on the tubing string, and it is together with the tubing string down to the bottom. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint by external force, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work.
When inspection and maintenance pump,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple.
Sucker Rod Pump Technical parameter list
| Specification | Pump diameter (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) | Sucker rod size |
| 15-106RHBC | Ø26.99 | 2.1-10.4 | 0.3-8.0 | 1.2-9.0 | 0.3-0.9 | 1.9” |
CYJ16 CYJ19 |
| 20-125RHBC | Ø31.75 | 2-3/8” | |||||
| 25-150RHBC | Ø38.10 | 2-7/8” | |||||
| 25-175RHBC | Ø44.45 | 2-7/8” | |||||
| 30-225RHBC | Ø57.15 | 3-1/2” |
Sucker Rod Pump Feature
1. Stable performance, high pumping efficiency.
2. Not affected by the tubing string, the service life is longer.
3. Suitable for high temperature, corrosion, sand and less gas well conditions.
It can be design according to the customer’s requirements.

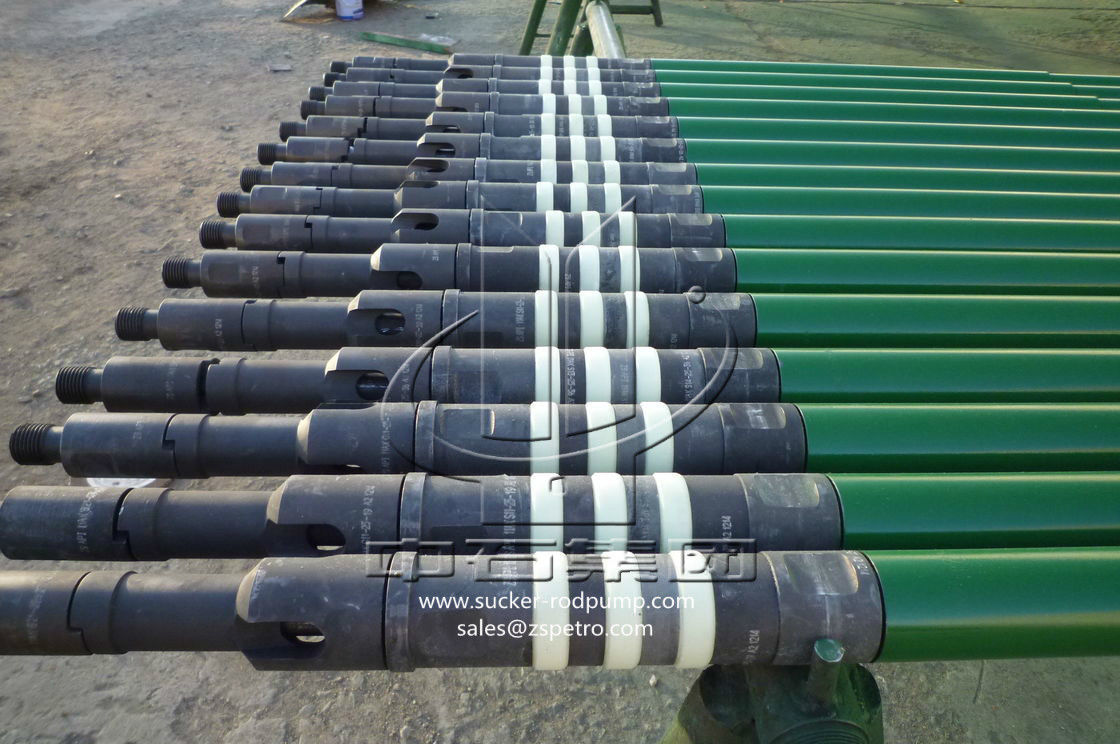

Sucker Rod Pump Pictures
