API10 Oilfield 2-3/8'' Hinged Stop Collar With Bolt

Name: API10 Oilfield 2-3/8'' Hinged Stop Collar With Bolt
Brand: Puyang Zhongshi Group Co., Ltd.
SKU: 4 1/2"~36"
Price: 105.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Puyang Zhongshi Group

Certification: API,ISO,QHSE

Model Number: 4 1/2"~36"

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: depends on quantity

Payment Terms: T/T, MoneyGram

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                2-3/8'' Hinged Stop Collar, API10 Hinged Stop Collar, API10 stop collar casing


Product:	API10 Oilfield Hinged Type Stop Collar	Installation:	Latch On
Specification:	2-3/8''- To 30''	Material:	65Mn,steel 20
Feature:	Used In Deviated Wells And Horizontal Wells	Size:	Available To Different Size

Product:	API10 Oilfield Hinged Type Stop Collar
Installation:	Latch On
Specification:	2-3/8''- To 30''
Material:	65Mn,steel 20
Feature:	Used In Deviated Wells And Horizontal Wells
Size:	Available To Different Size

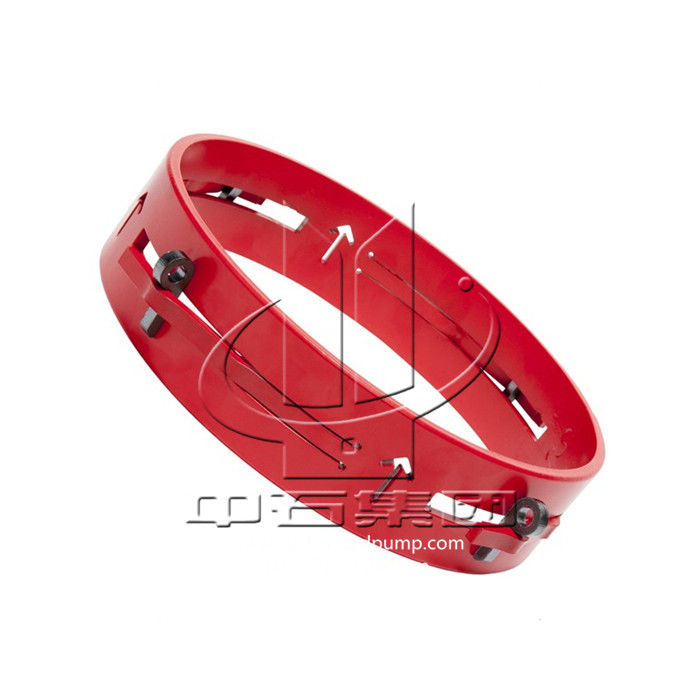

API10 Oilfield 2-3/8'' Hinged Stop Collar With Bolt

API10 Oilfield Hinged Type Stop Collar

The specially designed dogs bite into the casing, which provides the stop collar's strong holding force. The recommended torque on the bolt is approximately 25 to 35ft-lb. When properly installed, the hinged stop collar can provide a holding force up to 40,000lb.

API10 Oilfield Hinged Type Stop Collar Features

For both tubing and casing applications.
Provide reliable downhole performance.
Tapered pin hold the bows and hinges in the collars
The whole casing centralizer is made without any rivet and no welding.
The whole casing centralizer is composed of 3 parts, the spring, the hinges and tapered pin.
High-quality, super-strengthen spring-steel bows and especialy designed collar hinges

API10 Oilfield Hinged Type Stop Collar Specification

Specification (Inch)	ID (mm)	OD (mm)	Holding Force (KN)
13 3/ 8”	338	350	40
10 3/ 4”	272	284	40
9 5/ 8”	245	257	40
8 1/ 8”	206	218	40
7 5/ 8”	193	285	30
7”	177	189	30
5 1/ 2”	139	151	30
5”	126	138	24
4 1/ 2”	114	126	24

API10 Oilfield 2-3/8'' Hinged Stop Collar With Bolt 0
