Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Type Of Seating Assembly: |
Mechanical Anchor |
Location Of Seating Assembly: |
Bottom And Top |
Pump Barrel: |
Heavy Walled And Thin Walled |
Certificate No.: |
API 11AX-0061 |
Barrel: |
45# Steel With Chrome Plated Coating |
Plunger: |
45# Steel With Spray Metal |
Type Of Seating Assembly: |
Mechanical Anchor |
Location Of Seating Assembly: |
Bottom And Top |
Pump Barrel: |
Heavy Walled And Thin Walled |
Certificate No.: |
API 11AX-0061 |
Barrel: |
45# Steel With Chrome Plated Coating |
Plunger: |
45# Steel With Spray Metal |

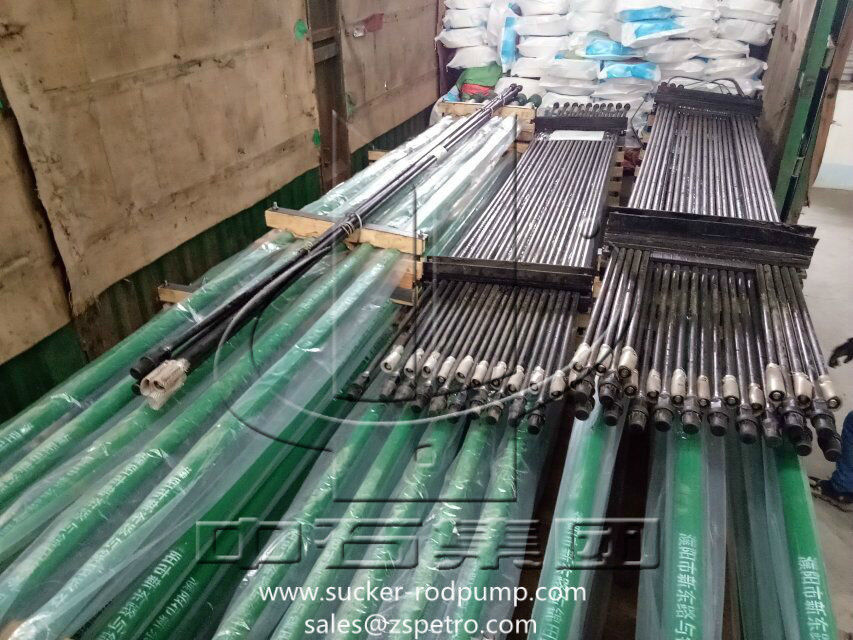

Mechanical Anchor Heavy Wall And Thin Wall Suker Rod Pump
Mechanical Heavy Wall And Thin Wall Sucker Rod Pump Description
Mechanical anchor rod pump with thin wall and heavy wall can be withstand higher oil well temperatuer than the cup type. This kind of rod pump is also equipped with a support joint, support joint connected on the tubing string, and it is together with the tubing string down to the bottom. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint by external force, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work. If the pump appeared quality problem,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple. Mechanical anchor rod pump can withstand high oil well temperature.
Technical parameter list:
Heavy walled list
| Specification | Pump diameter (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) |
| 15-106RHBM | Ø26.99 | 2.1-10.4 | 0.3-8.0 | 1.2-9.0 | 0.3-0.9 | 1.9" |
| 20-125RHAM | Ø31.75 | 2-3/8” | ||||
| 20-125RHBM | ||||||
| 25-150RHAM | Ø38.1 | 2-7/8” | ||||
| 25-150RHBM | ||||||
| 25-175RHBM | Ø44.45 | |||||
| 25-175RHAM | ||||||
| 30-225RHAM | Ø57.15 | 3 1/2" | ||||
| 30-225RHBM |
Thin walled list
| Specification | Pump diameter (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) |
| 20-125RWAM | Ø31.75 | 2.1-10 | 0.3-8.0 | 1.2-9.0 | / | 2-3/8” |
| 20-125RWBM | ||||||
| 20-150RWAM | Ø38.1 | 2-7/8” | ||||
| 20-150RWBM | ||||||
| 25-200RWAM | Ø50.80 | |||||
| 25-200RWBM | ||||||
| 30-250RWAM | Ø63.50 | 3 1/2" | ||||
| 30-250RWBM |
Features
1. Mechanical seating locations: top and bottom
2. There two kinds of mechanical seating sucker rod pumps: heavy wall rod pump and thin wall rod pump
4. Mechanical rod pump are running inside the tubing with the support joint ,it is suitable for high temperature of deep well
