Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API，ISO，QHSE
Model Number: ZS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: T/T, D/P, D/A, L/C, Western Union
Supply Ability: 1000 Sets per Month
Brand Name: |
ZS |
Material: |
Metal |
Application: |
Insert Pump |
Product Name: |
The Plunger Of Pump |
Warranty: |
12 Months |
Color: |
Required |
Manufacturer: |
Puyang Zhongshi Group |
Payment: |
L/C, Bank Transfer |
Brand Name: |
ZS |
Material: |
Metal |
Application: |
Insert Pump |
Product Name: |
The Plunger Of Pump |
Warranty: |
12 Months |
Color: |
Required |
Manufacturer: |
Puyang Zhongshi Group |
Payment: |
L/C, Bank Transfer |

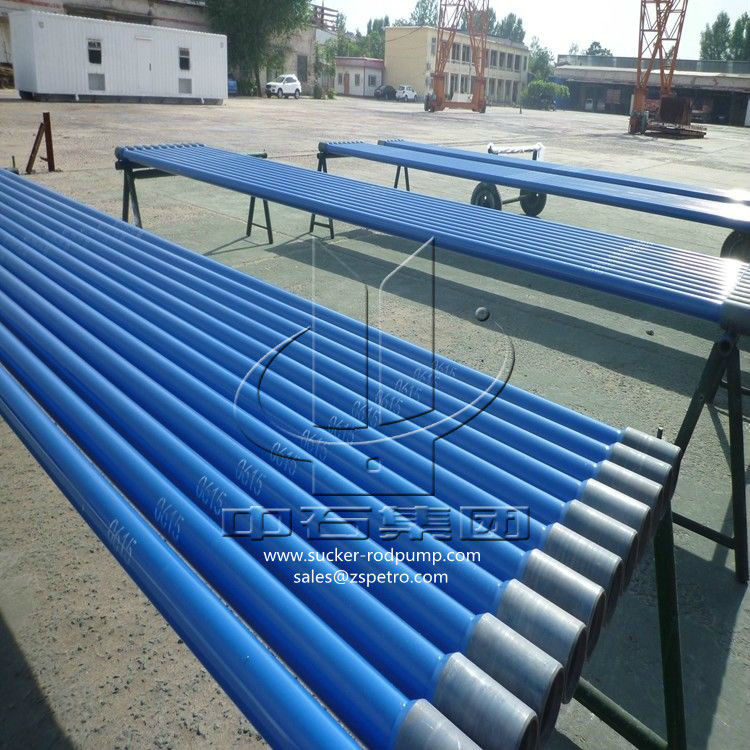

High Accuracy Oilfield Pump Parts Sucker Rod Pump Barrel
Product Description
For this type of pump, the barrel is put in the well to the designed depth with tubing. And then put the plunger into the barrel with sucker rod. Given the tubing size, the bore of the tubing pump is larger than that of the rod pump, so the pump rate is higher. According to seating mode, the rod pump can be divided into three types: THC pump (Stationary Heavy Wall, Cup Seating, Tubing pump), THM pump (Stationary Heavy Wall Mechanical. Seating, Tubing Pump) and THD pump.
Technical Specifications
|
Nominal diameter mm |
Length series of the plunger m |
Extension nipple length m |
O.D. of the connecting oil pipe mm |
Diameter of the connecting pumping rod mm |
Pump constant m3/d |
Max. O.D. mm |
| 28 |
0.6 0.9 1.2 1.5 |
0.3 0.6 0.9 |
60.3,73.0 | 16 | 0.916 | 88.9 |
| 32 | 60.3,73.0 | 16 | 1.140 | 88.9 | ||
| 38 | 60.3,73.0 | 16/19 | 1.642 | 88.9 | ||
| 44 | 60.3,73.0 | 19 | 2.235 | 88.9 | ||
| 57 | 73.0 | 19 | 3.694 | 88.9 | ||
| 70 | 88.9 | 22 | 5.518 | 107 | ||
| 83 | 101.6 | 22 | 7.707 | 114 | ||
| 95 | 114.3 | 25 | 10.261 | 121 |
