Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Spiral Vane Stamped Casing Centralizer |
Color: |
Red |
Type: |
Stamped |
Feature: |
High-performance |
Service: |
OEM |
Application: |
Well Cementing |
Product: |
Spiral Vane Stamped Casing Centralizer |
Color: |
Red |
Type: |
Stamped |
Feature: |
High-performance |
Service: |
OEM |
Application: |
Well Cementing |

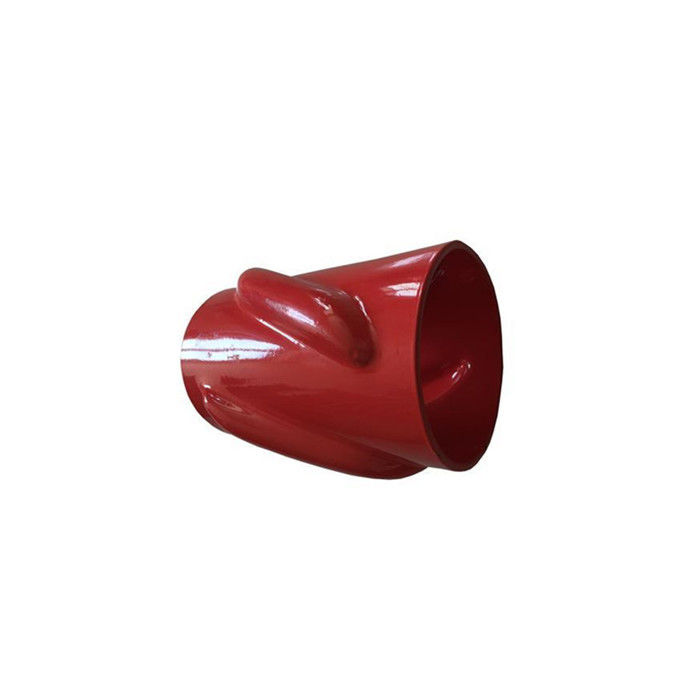

Spiral Vane Stamped Casing Centralizer
Spiral Vane Stamped Casing Centralizer designed to reduce the amount of friction between the casing and the hole, allowing the casing to be inserted more easily into the wellbore; and help prevent the casing string from becoming differentially stuck.
Available in straight or spiral blades.
Optimize mud displacement in vertical,inclined,and horizontal wells.
For lower torque and drag forces and undergo a special coating to prevent from rust.
The blades design can reduce minimum friction when running a casing duo to the smooth profile.
The set screws can be integral with solid rigid centralizer body and then help save operation time and cost.
| Specification | casing size (mm) | Hole Size (mm) | Inner Diameter (mm) | Outer Diameter (mm) |
| 4-1/2"×6" | 114 | 152 | 118 | 146 |
| 5-1/2"×8-1/2" | 140 | 216 | 142 | 210 |
| 7″×8-1/2″ | 178 | 216 | 182 | 210 |
| 9-5/8″×12-1/4″ | 244 | 311 | 249 | 305 |
