Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Non-weled Double Crest Casing Centralizer |
Type: |
Hinged |
Color: |
Red Or As Required |
Installation: |
Latched On |
Vane: |
Double Crest |
Application: |
Oilfield Cementing Equipment |
Product: |
Non-weled Double Crest Casing Centralizer |
Type: |
Hinged |
Color: |
Red Or As Required |
Installation: |
Latched On |
Vane: |
Double Crest |
Application: |
Oilfield Cementing Equipment |

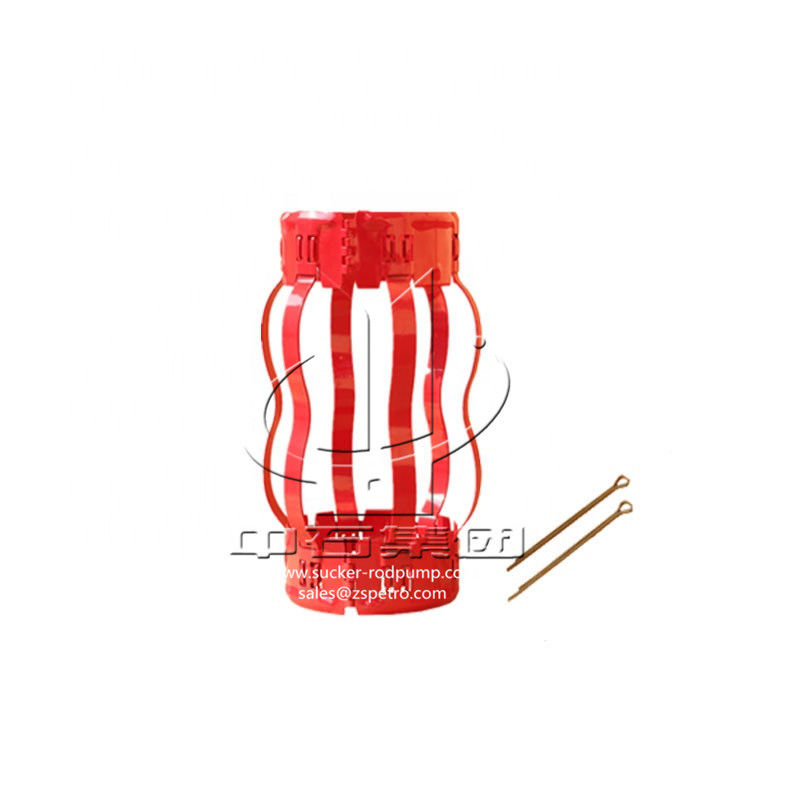

Double Crest Bow Spring Centralizer
Compared to conventional bow spring centralizers, double-crested bow provide better standoff for more effective mud removal, which enhances the primary cement job and zonal isolation.
Bow configuration are available in various height and size suitable for most application
Easy-installing and cost-saving in shipping
Interlocking design between the end collars and bow springs makes a reliable down hole performance.
| Height | Size (in) | ID(mm) | OD |
| (mm) | (mm) | ||
| 250 | 13-3/8”*17-1/2” | 342-347 | 440 |
| 250 | 9-5/8”*12-1/4” | 250-255 | 311 |
| 130 | 7”*8-1/2” | 181-186 | 210 |
| 200 | 7”*9-5/8” | 181-186 | 240 |
| 200 | 7-5/8”*9-5/8” | 197-201 | 240 |
| 130 | 6”*8-1/2” | 156-158 | 210 |
| 130 | 5-1/2”*7” | 142-148 | 174 |
| 130 | 5-1/2”*8-1/2” | 142-148 | 210 |
