H2S Resistant Structure Subsurface Suker Rod Pump chrome plated

Name: H2S Resistant Structure Subsurface Suker Rod Pump chrome plated
Brand: Puyang Zhongshi Group Co., Ltd.
SKU: Sucker rod pump
Price: 19,525.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: Sucker rod pump

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                H2S Resistant Suker Rod Pump, Chrome Plated Suker Rod Pump, H2S Resistant oilfield sucker rods


Standard:	NACE	Seating Assembly:	Mechanical Seating
Seating Loacation:	Top Or Bottom	Barrel:	45# Steel, Chrome Plated
Barrel Type:	Thin Wall Or Heavy Wall	API Certificate:	API 11AX-0061

Standard:	NACE
Seating Assembly:	Mechanical Seating
Seating Loacation:	Top Or Bottom
Barrel:	45# Steel, Chrome Plated
Barrel Type:	Thin Wall Or Heavy Wall
API Certificate:	API 11AX-0061

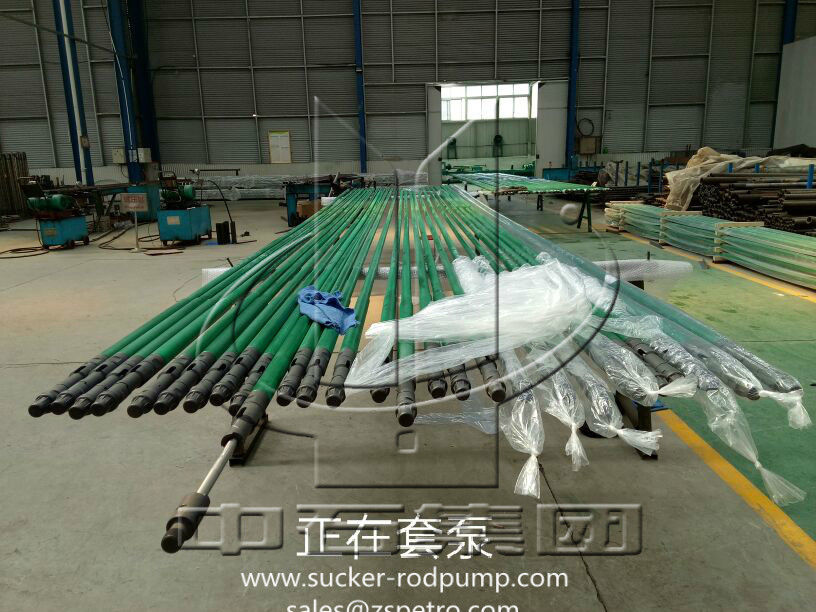

H2S Resistant Structure Subsurface Suker Rod Pump chrome plated

H2S Resistant Structure Subsurface Sucker Rod Pump

H2S Resistant Structure Sucker Rod Pump Description

H2S resistant sucker rod pump is a new kind of subsurface rod pump in Puyang Zhongshi Group, suitable for the extreme corrosion for salt water, H2S and CO2. The basic structure is same with the API oil rod pumps, but the parts material is corrosion resisitant.Sucker rod pump is equipped with a seating nipple(there are two seating nipples in API-RHBM-AC) , seating nipple connection on the tubing string, down to the bottom of the well with the tubing string. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint by external force, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work. Don't need to put out of the tubing string when the sucker rod pump is mantained, only through rod string together put out of the whole pump, operation is simple. NACE standard, is used in the oil well enviroment of extreme abrasion

Technical parameter list:

Specification

Pump diameter

Barrel length

(ft)

Plunger length

(ft)

Stroke length

(ft)

Extension length

(ft)

Tubing size

EUE/NUE

Sucker rod

size

20-125RWAM	Ø31.75	2.1-10	0.3-8	1.2-9	/	2-3/8”	5/8” 3/4”
20-125RWAC
20-125RWBM
20-125RWBC
20-150RWAM	Ø38.10
20-150RWAC
20-150RWBM
20-150RWBC
25-200RWAM	Ø50.80					2-7/8”
25-200RWAC
25-200RWBM
25-200RWBC
30-250RWAM	Ø63.50					3-1/2”
30-250RWAC
30-250RWBM

Features

1. The pump design is according to NACE standard.
2. Mechanical seating assembly
3. Heavy wall and thin wall.
